This question describes a new instruction we might consider adding to the Y86-64 processor. Like the textbook does in the section 4.3 and we did in lecture for the existing Y86-64 instructions, give the actions that a SEQ-style Y86-64 implementation would take in each stage to execute the instruction. For each instruction, you should make a table with 6 rows labeled Fetch, Decode, Execute, Memory, Writeback, and PC update (similar to Figure 4.18). Use the same notations as we did in class, with signal names like valA, and R[...] and M[... ] to represent accesses to the register file and memory. The leave instruction is used to clean up a stack frame when a frame pointer is in use (its mentioned in section 3.10.5 of the textbook, p. 292). It first copies the frame pointer %rbp into the stack pointer %rsp, and then it pops the top entry of the stack into %rbp. In other words, it is equivalent to the two-instruction sequence:

1. movq %rbp, %rsp

2. popq %rbp

	Leave
Fetch
Decode
Execute
Memory
Write Back
PC Update

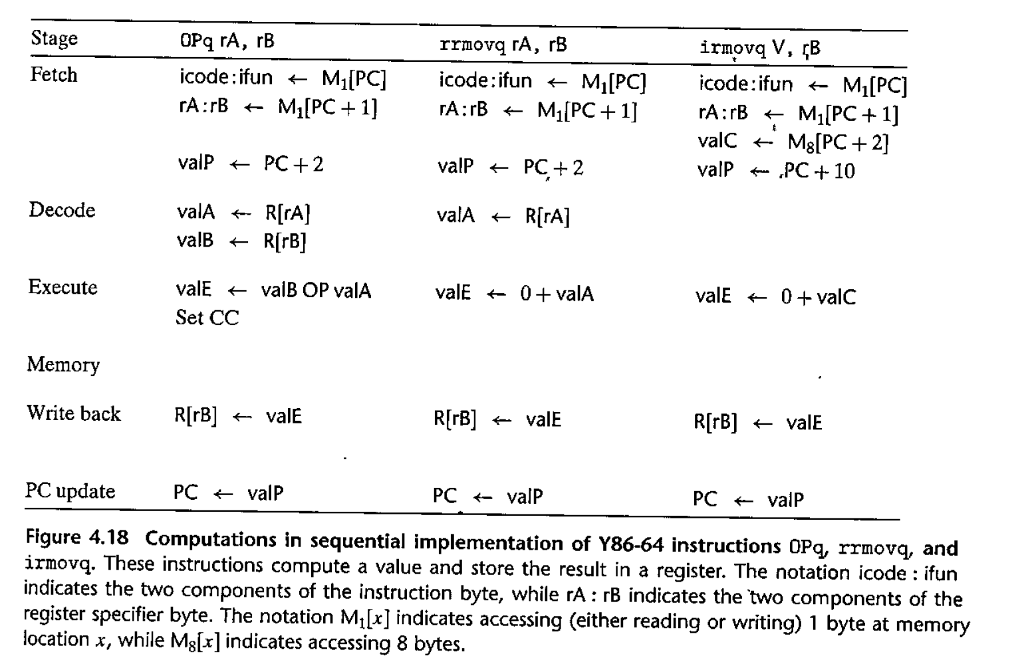

Figure 4.18:
