Question: Three cables are connected at A , where the forces P and Q are applied as shown. Determine the tension in each cable knowing thatThree

Three cables are connected at A, where the forces P and Q are applied as shown. Determine the tension in each cable knowing thatThree cables are connected at A, where the forces P and Q are applied as shown. Determine the tension in each cable knowing that

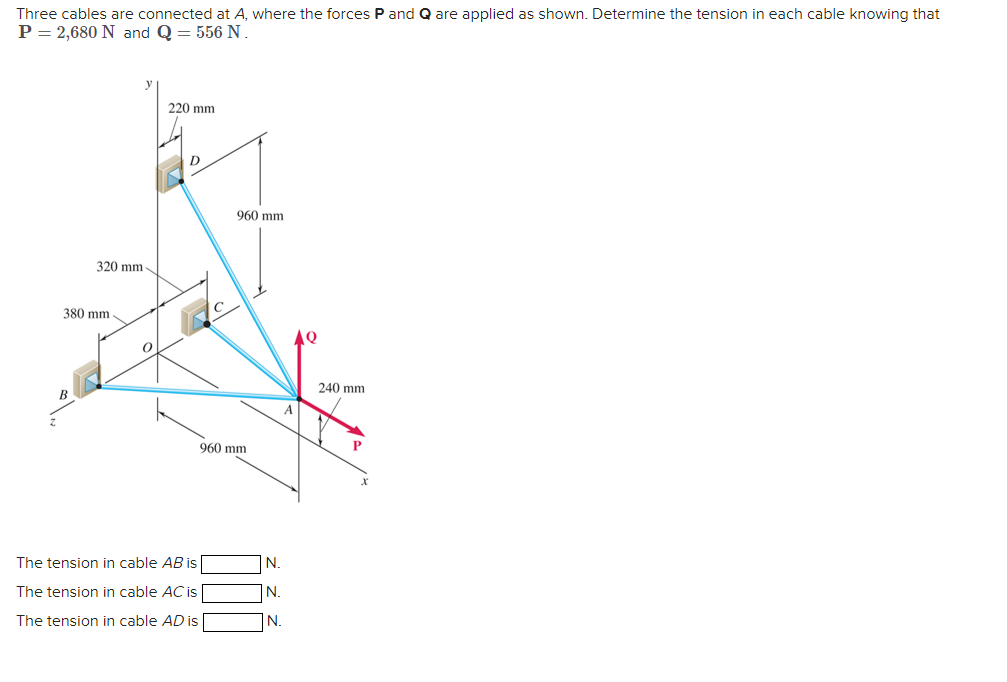

P=2,680N and Q=556N.
The tension in cable AB is
N .
The tension in cable AC is
N .
The tension in cable AD is
N .
P=2,680N and Q=556N.
The tension in cable AB is
N .
The tension in cable AC is
N .
The tension in cable AD is
N .
Three cables are connected at A , where the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Three cables are connected at A, where the forces P and Q are applied as shown. Knowing that 0, Q = find the value of P for which the tension in cable AD is 305 N. 220 mm 960 mm 320 mm 380 mm 0 240...

Q:

Three cables are connected at A, where the forces P and Q are applied as shown. Knowing that 1200 N, P = determine the values of Q for which cable AD is taut. 220 mm 960 mm 320 mm 380 mm 240 mm 960 mm

Q:

1) A steel tank is to be positioned in an excavation. Knowing that a = 20", determine by trigonometry (a) the required magnitude of the force P if the resultant R of the two forces applied at A is to...

Q:

Problem 4 Three cables are connected at D, where an upward force of 30 kN is applied. Determine the tension in each cable. Problem 5 A 300-N force is applied atA as shown. Determine (a) the moment of...

Q:

! Required information Problem 0 2 . 1 2 4 - Container supported by cables A container of weight W is suspended from ring A . Cable BAC passes through the ring and is attached to fixed supports at B...

Q:

I am having some trouble with these questions 2.93 Knowing that the tension is 425 1b in cable AB and 5 10 1b in cable AC, determine the magnitude and direc tion of the resultant of the forces...

Q:

Problem 1 Cable AB is 65 ft long, and the tension in that cable is 3900 lb. Determine (a) the x, y, and 2 components of the force exerted by the cable on the anchor B, (b) the angles 19x, 19,, , and...

Q:

Q.1) A cylinder is supported by three cables as I m shown. If each cable can support a maximum tension of 120 N, determine 3 m 3'1 (a) the largest mass (kg) of a cylinder the system can support, 4 m...

Q:

2 . 4 4 Two cables are tied together at C and are loaded as shown. Knowing that = 2 0 , determine the tension ( a ) in cable A C , ( b ) in cable B C . 2 . 5 7 Two cables tied together at C are...

Q:

A vertical force of F = 3 . 4 kN is applied to the hook at A as shown in ( Figure 1 ) . Set d = 1 m . Figure 1 of 1 A crate is suspended by three cables ' A ' B , ' A ' C , and ' A ' D connected to...

Q:
