Question: Three cables are connected at D , where an upward force of 3 6 kN is applied. Determine the tension in each cable. The tension

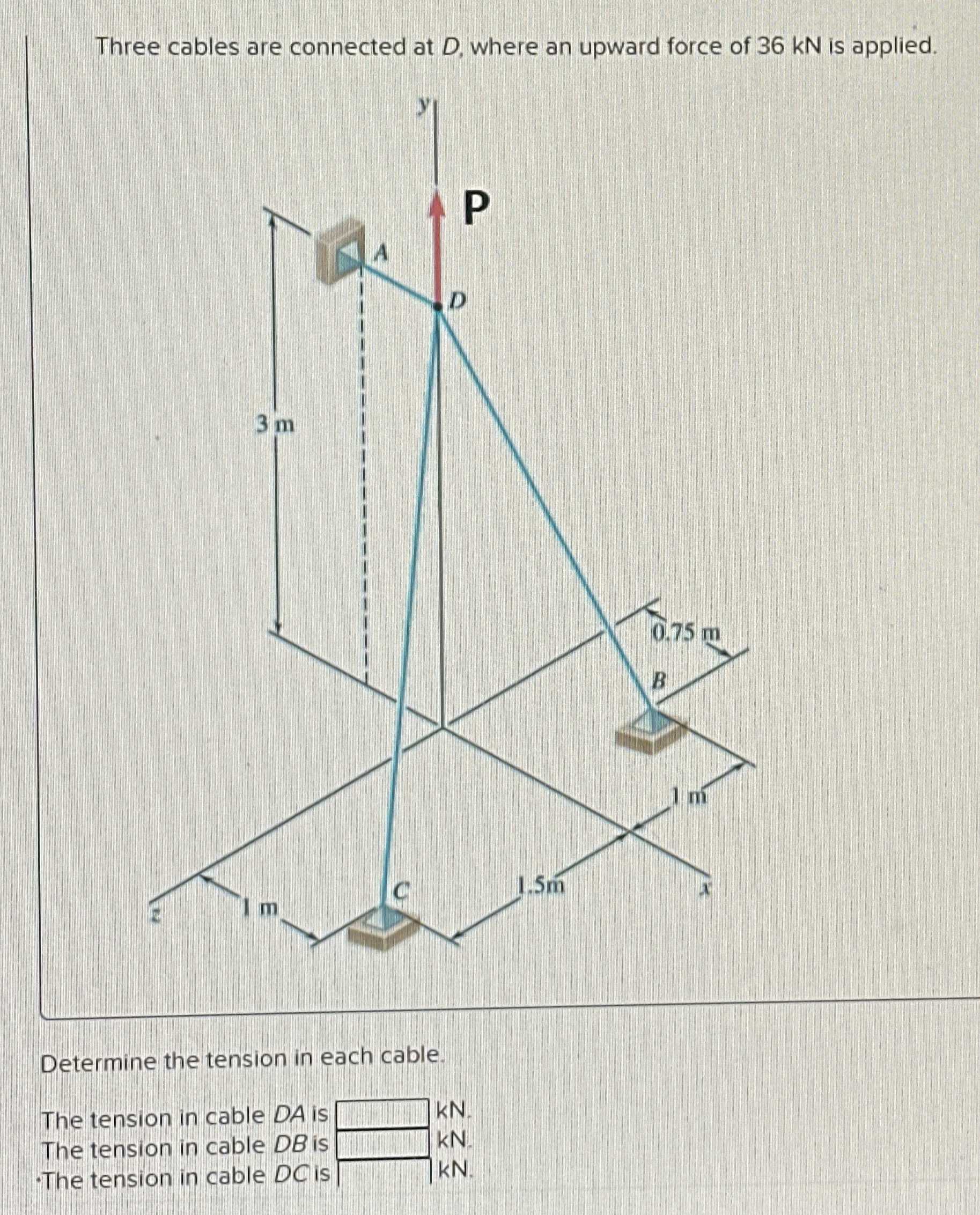

Three cables are connected at D, where an upward force of 36 kN is applied.
Determine the tension in each cable.
The tension in cable DA is kN .
The tension in cable DB is kN .
-The tension in cable DC is kN .
Three cables are connected at D , where an upward

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
