Question: Three forces act on the ring. If the resultant force F R has a magnitude and direction as shown, determine the magnitude and the coordinate

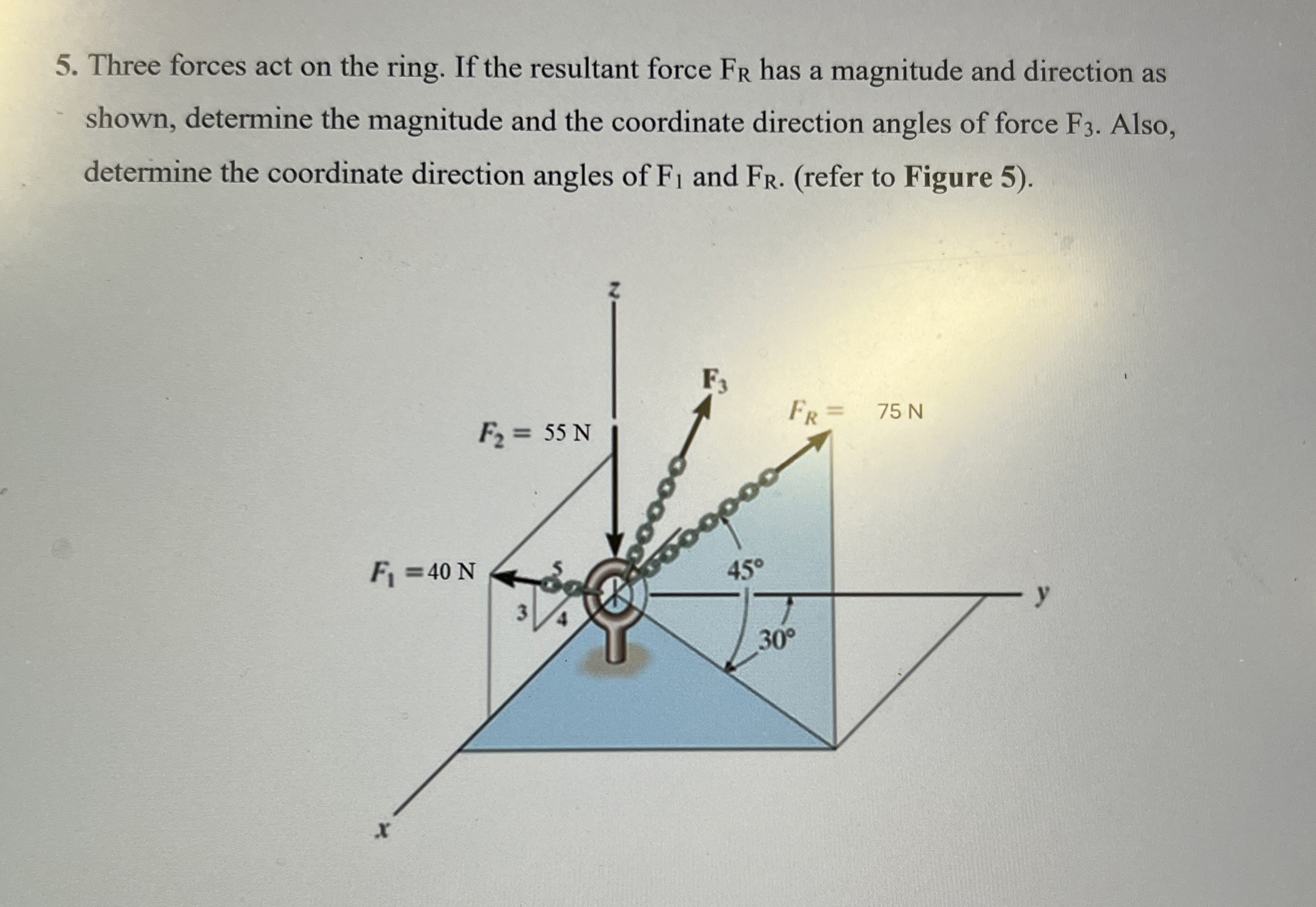

Three forces act on the ring. If the resultant force FR has a magnitude and direction as shown, determine the magnitude and the coordinate direction angles of force F3. Also, determine the coordinate direction angles of F1 and FR.(refer to Figure 5). Please expain steps
Three forces act on the ring. If the resultant

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
