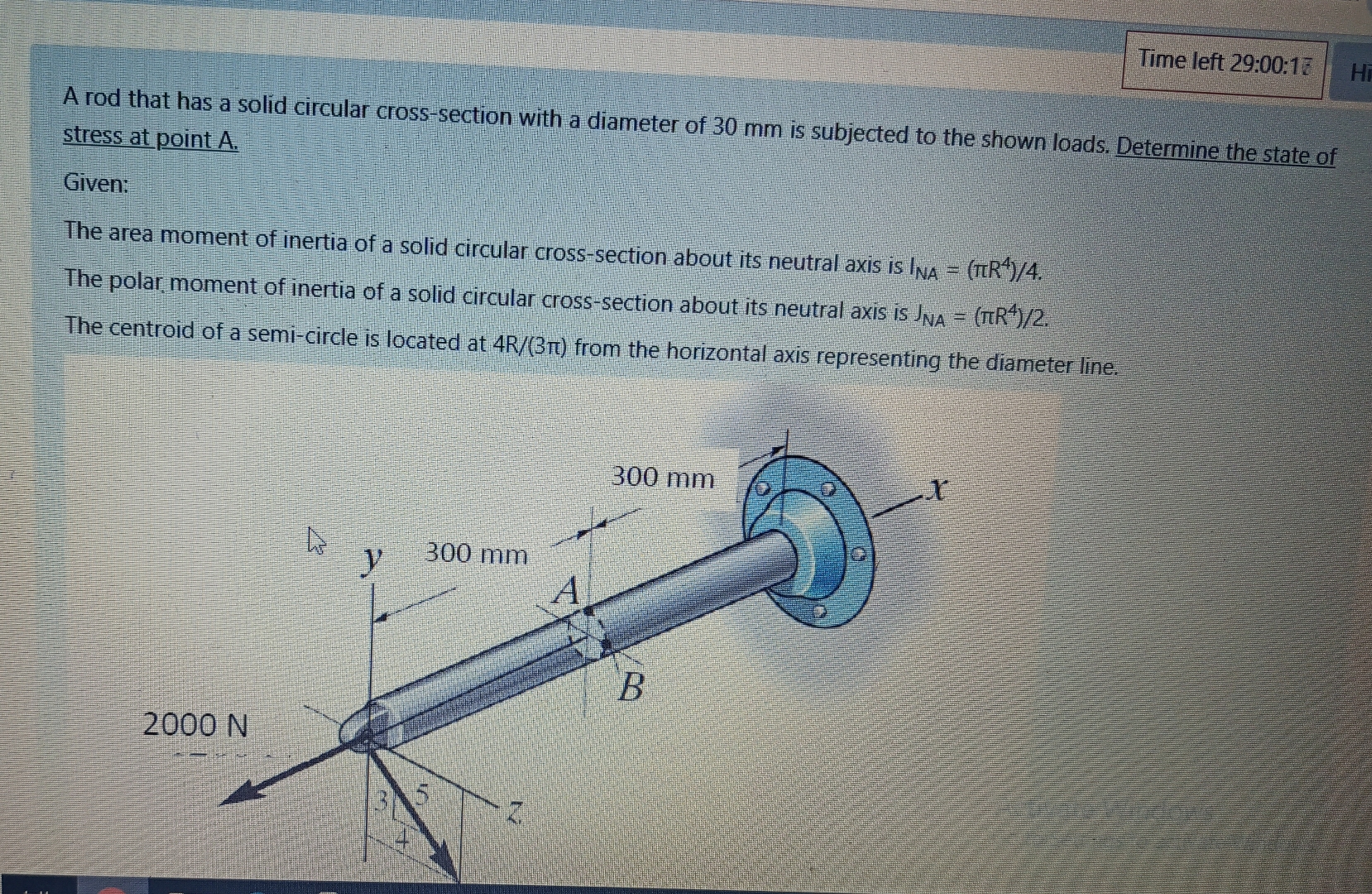

A rod that has a solid circular cross$-$section with a diameter of $30$ mm is subjected to the shown loads. Determine the state of stress at point $A.$

Given:

The area moment of inertia of a solid circular cross$-$section about its neutral axis is $l_{NA}=\frac{R^4}{4}.$

The polar moment of inertia of a solid circular cross$-$section about its neutral axis is $J_{NA}=\frac{R^4}{2}.$

The centroid of a semi$-$circle is located at $4\frac{R}{3}$ from the horizontal axis representing the diameter line.
