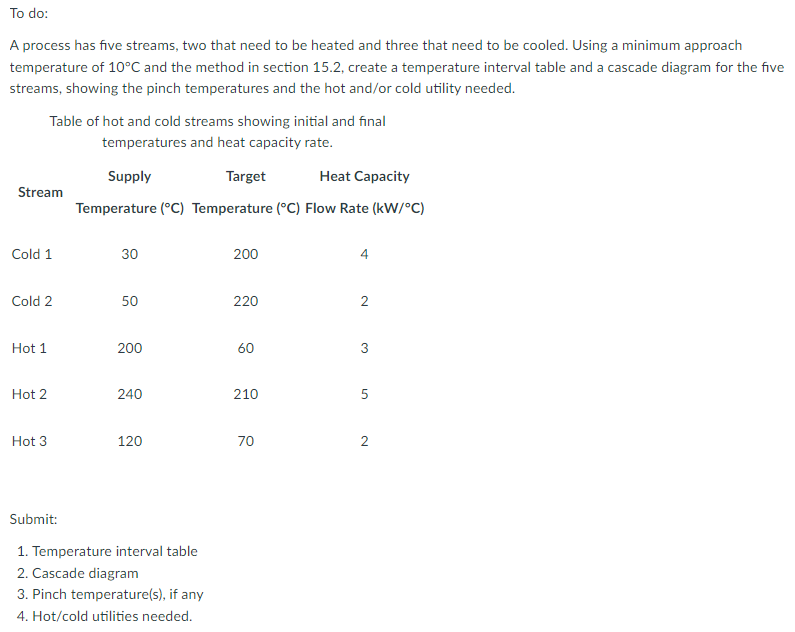

To do:

A process has five streams, two that need to be heated and three that need to be cooled. Using a minimum approach

temperature of $10C$ and the method in section $15\mathrm{.}2,$ create a temperature interval table and a cascade diagram for the five

streams, showing the pinch temperatures and the hot and$/$or cold utility needed.

Table of hot and cold streams showing initial and final

temperatures and heat capacity rate.

Submit:

Temperature interval table

Cascade diagram

Pinch temperature$($s$),$ if any

Hot$/$cold utilities needed.
