Question: Topic: Material Properties The lap joint is connected together using a 1 . 2 5 - inch diameter bolt. If the bolt is made from

Topic: Material Properties

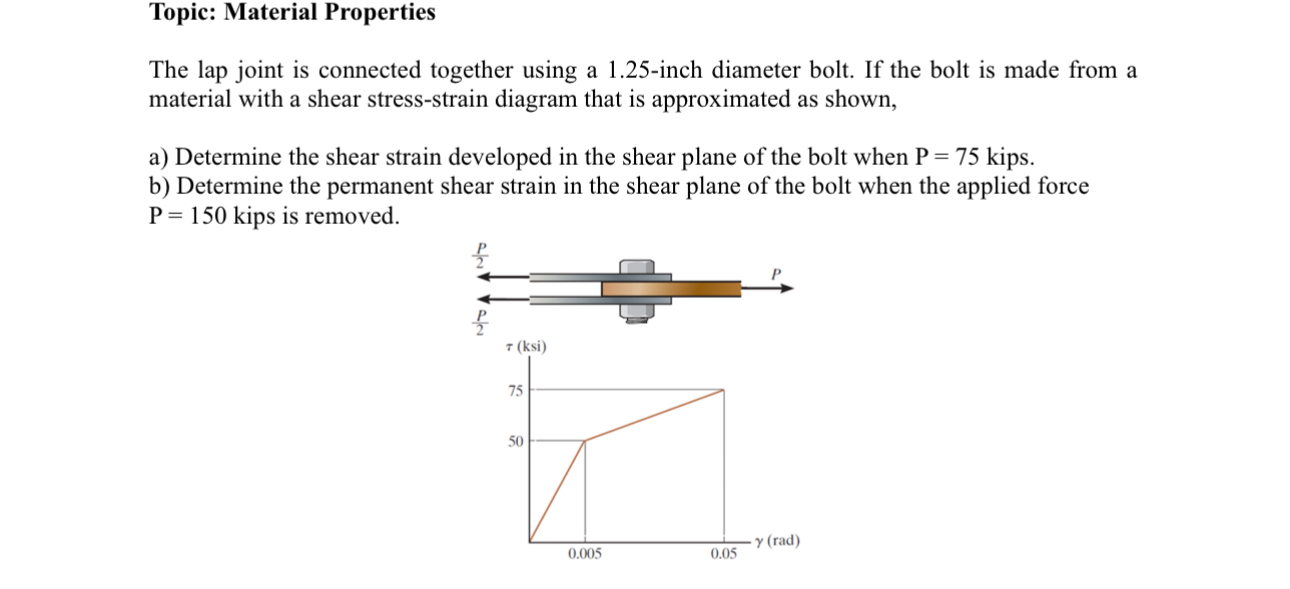

The lap joint is connected together using a 1.25-inch diameter bolt. If the bolt is made from a material with a shear stress-strain diagram that is approximated as shown,
a) Determine the shear strain developed in the shear plane of the bolt when P=75kips.
b) Determine the permanent shear strain in the shear plane of the bolt when the applied force P=150kips is removed.
Topic: Material Properties The lap joint is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The lap joint is connected together using a 1.25 in. diameter bolt. If the bolt is made from a material having a shear stressstrain diagram that is approximated as shown, determine the permanent...

Q:

The lap joint is connected together using a 1.25 in. diameter bolt. If the bolt is made from a material having a shear stressstrain diagram that is approximated as shown, determine the permanent...

Q:

The lap joint is connected together using a 1.25 in. diameter bolt. If the bolt is made from a material having a shear stressstrain diagram that is approximated as shown, determine the shear strain...

Q:

Part A The lap joint is connected together using a 1 . 7 5 - in . diameter bolt. ( Figure 1 ) If the bolt is made from a material having a shear stress - strain diagram that is approximated as shown...

Q:

The lap joint is connected together using a 1 . 7 5 - in . : diameter bolt. ( Figure 1 ) Part A If the bolt is made from a material having a shear stress - strain diagram that is approximated as...

Q:

The lap joint is connected together using a 1 . 2 5 i n . diameter bolt. ( Figure 1 ) Part A If the bolt is made from a material having a shear stress - strain diagram that is approximated as shown...

Q:

The lap joint is connected together using a 1 . 2 5 in . diameter bolt. ( Figure 1 ) If the bolt is made from a material having a shear stress - strain diagram that is approximated as shown in the...

Q:

Part A The lap joint is connected together using a 1.27-in.- diameter bolt. (Figure 1) If the bolt is made from a material having a shear stress-strain diagram that is approximated as shown in...

Q:

The lap joint is connected together using a 1 . 2 7 - in . - diameter bolt. ( Figure 1 ) Figure 1 of 2 Part A If the bolt is made from a material having a shear stress - strain diagram that is...

Q:

The joint shown below is connected together using a 5 mm diameter bolt. When the force \ ( P \ ) is applied, the bolt deforms. The bolt is made from a material having a shear stress - strain diagram...
