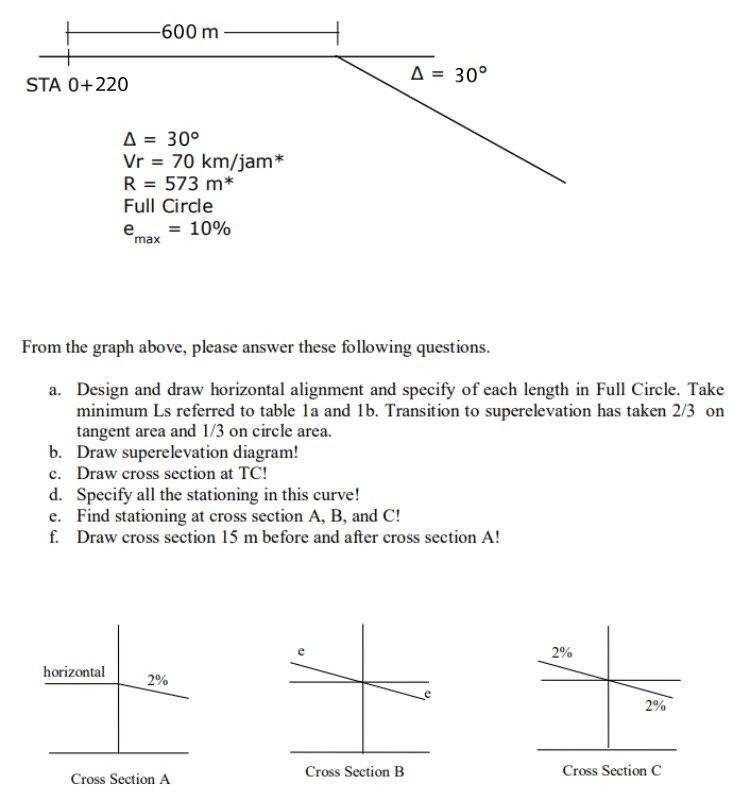

-600 m A = 30 STA 0+220 A = 30 Vr = 70 km/jam* R = 573 m* Full Circle = 10% max From the graph above, please answer these following questions. a. Design and draw horizontal alignment and specify of each length in Full Circle. Take minimum Ls referred to table la and 1b. Transition to superelevation has taken 2/3 on tangent area and 1/3 on circle area. b. Draw superelevation diagram! c. Draw cross section at TC! d. Specify all the stationing in this curve! e. Find stationing at cross section A, B, and C! f. Draw cross section 15 m before and after cross section A! 2% horizontal 2% 2% Cross Section A Cross Section B Cross Section C -600 m A = 30 STA 0+220 A = 30 Vr = 70 km/jam* R = 573 m* Full Circle = 10% max From the graph above, please answer these following questions. a. Design and draw horizontal alignment and specify of each length in Full Circle. Take minimum Ls referred to table la and 1b. Transition to superelevation has taken 2/3 on tangent area and 1/3 on circle area. b. Draw superelevation diagram! c. Draw cross section at TC! d. Specify all the stationing in this curve! e. Find stationing at cross section A, B, and C! f. Draw cross section 15 m before and after cross section A! 2% horizontal 2% 2% Cross Section A Cross Section B Cross Section C
