Question: tructure for Question 5 . 5 . ( Maximum 2 0 points ) Consider the frame shown in figure 3 ( right ) . Determine

tructure for Question 5.

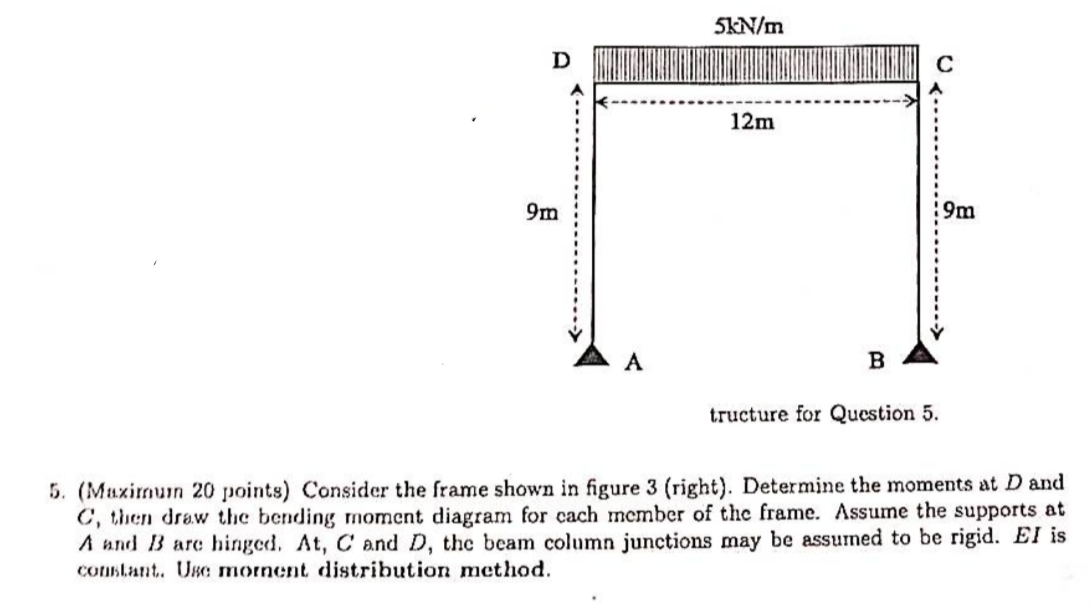

5.(Maximum 20 points) Consider the frame shown in figure 3(right). Determine the moments at D and C, then draw the bending moment diagram for cach member of the frame. Assume the supports at A and B are hinged. At,C and D, the beam column junctions may be assumed to be rigid. EI is constant. Use mornent distribution method.
tructure for Question 5 . 5 . ( Maximum 2 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
