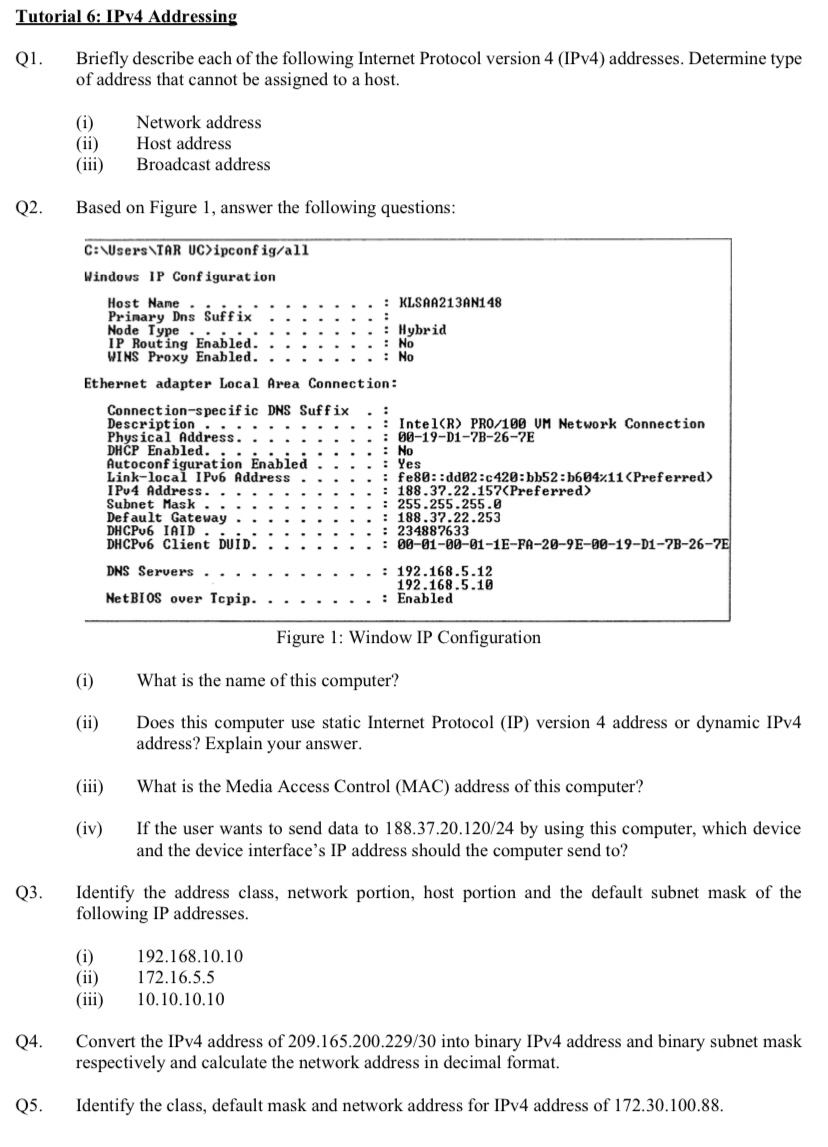

Tutorial $6$: IPv$4$ Addressing

Q$1.$ Briefly describe each of the following Internet Protocol version $4($IPv$4)$ addresses. Determine type of address that cannot be assigned to a host.

$($i$)$ Network address

$($ii$)$ Host address

$($iii$)$ Broadcast address

Q$2.$ Based on Figure $1,$ answer the following questions:Figure $1$: Window IP Configuration$($i$)$ What is the name of this computer?$($ii$)$ Does this computer use static Internet Protocol $($IP$)$ version $4$ address or dynamic IPv$4$ address? Explain your answer.$($iii$)$ What is the Media Access Control $($MAC$)$ address of this computer?$($iv$)$ If the user wants to send data to $188\mathrm{.}37\mathrm{.}20\mathrm{.}120//24$ by using this computer, which device and the device interface's IP address should the computer send to$?$

Q$3.$ Identify the address class, network portion, host portion and the default subnet mask of the following IP addresses.

$($i$)192\mathrm{.}168\mathrm{.}10\mathrm{.}10$

$($ii$)172\mathrm{.}16\mathrm{.}5\mathrm{.}5$

$($iii$)10\mathrm{.}10\mathrm{.}10\mathrm{.}10$

Q$4.$ Convert the IPv$4$ address of $209\mathrm{.}165\mathrm{.}200\mathrm{.}229/30$ into binary IPv$4$ address and binary subnet mask respectively and calculate the network address in decimal format.

Q$5.$ Identify the class, default mask and network address for IPv$4$ address of $172\mathrm{.}30\mathrm{.}100\mathrm{.}88.$
