Question: TUTORIAL MODULE 5: QUESTIONS FOR UNIVERSAL & DUAL SYMBOL QUESTION 6 For every circuit (a) to (h), please replace the basic gates with NAND universal

TUTORIAL MODULE 5: QUESTIONS FOR UNIVERSAL & DUAL SYMBOL QUESTION 6

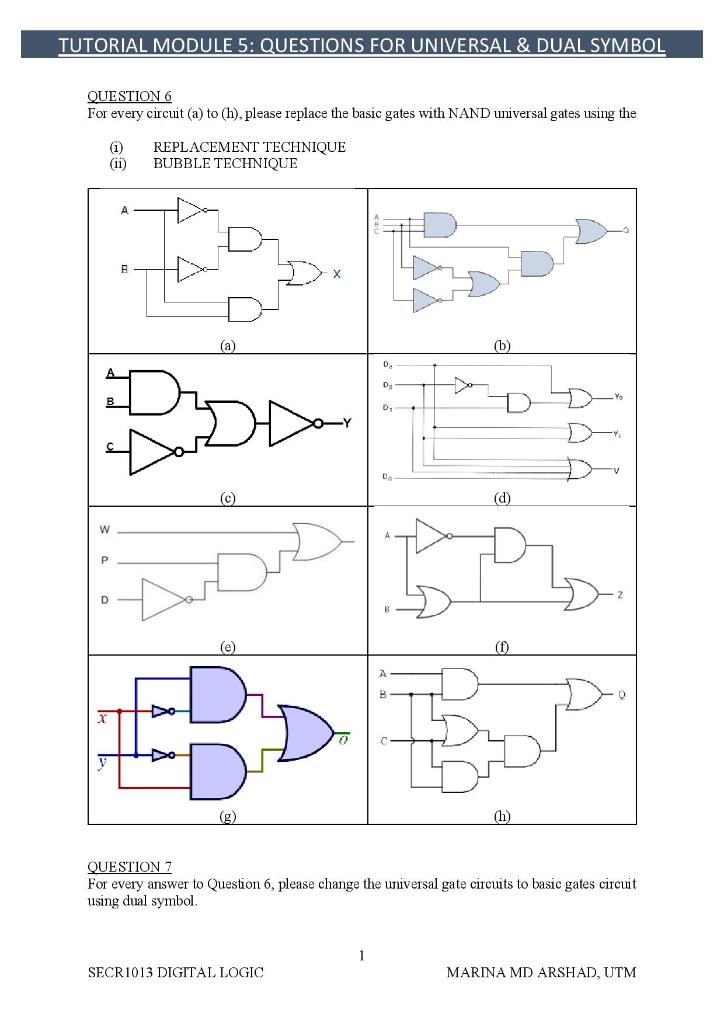

TUTORIAL MODULE 5: QUESTIONS FOR UNIVERSAL & DUAL SYMBOL QUESTION 6 For every circuit (a) to (h), please replace the basic gates with NAND universal gates using the (1) (11) REPLACEMENT TECHNIQUE BUBBLE TECHNIQUE A E (b) D D. D. (d) w D (e) (1) BE (g) (h) QUESTION 7 For every answer to Question 6, please change the universal gate circuits to basic gates circuit using dual symbol. SECR1013 DIGITAL LOGIC MARINA MD ARSHAD, UTM
