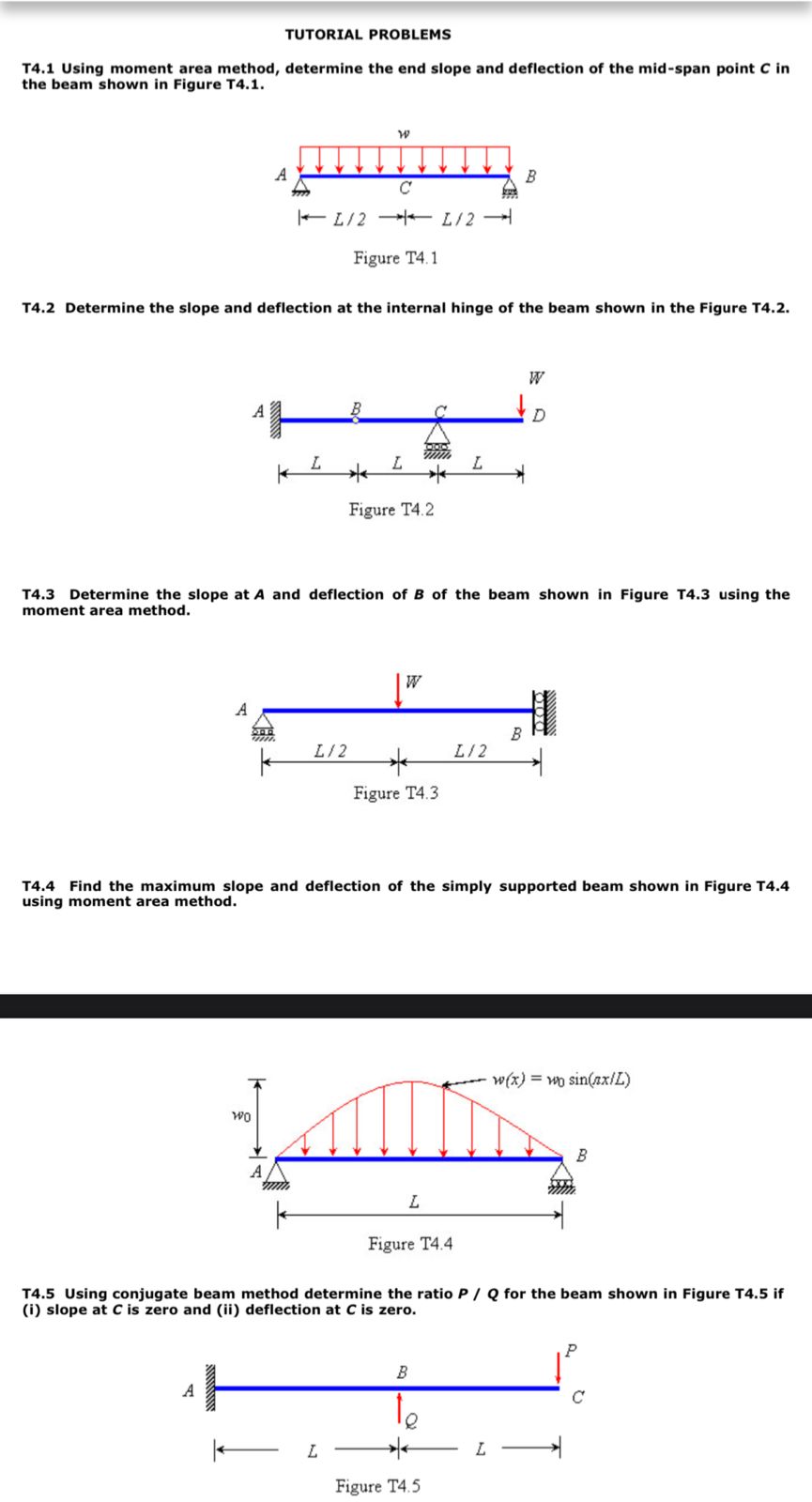

TUTORIAL PROBLEMS

T$4\mathrm{.}1$ Using moment area method, determine the end slope and deflection of the mid$-$span point $C$ in

the beam shown in Figure T$4\mathrm{.}1.$

T$4\mathrm{.}2$ Determine the slope and deflection at the internal hinge of the beam shown in the Figure T$4\mathrm{.}2.$

T$4\mathrm{.}3$ Determine the slope at A and deflection of $B$ of the beam shown in Figure T$4\mathrm{.}3$ using the

moment area method.

T$4\mathrm{.}4$ Find the maximum slope and deflection of the simply supported beam shown in Figure T$4\mathrm{.}4$

using moment area method.

T$4\mathrm{.}5$ Using conjugate beam method determine the ratio $P/Q$ for the beam shown in Figure T$4\mathrm{.}5$ if

$($i$)$ slope at $C$ is zero and $($ii$)$ deflection at $C$ is zero.
