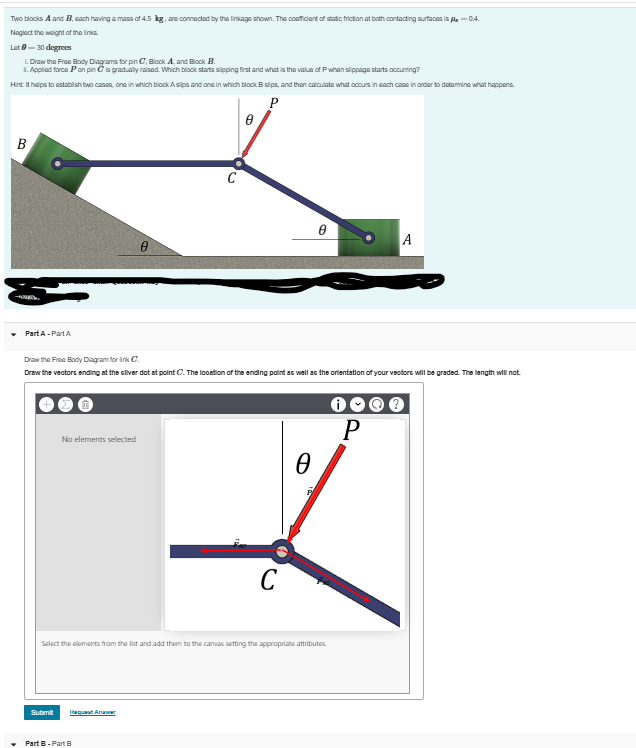

Two blocis A and B$,$ each having a mass of $4\mathrm{.}5$ kg $,$ are connocted by the likiage shown. The coefficient of shatic friction at both contacting surfaces is mu$\_($n$)=0\mathrm{.}4.$

Naglect the weight of the linice.

Let theta$-30$ degrees

Draw the Froe Blody Diagrams for pin C$,$ Block A$,$ and Block B$.$

i$.$ Appliad force P on pin C is gradually raised. Which block starts sipping first and what is the value of P when el pasge starts ocourring?

Part A $-$ PartA

Draw the Free Body Disgram for link C$.$

Drew the vectors ending at the cliver dot at point C$.$ The loostion of the anding polint ac wall act the oriantation of your vestore will be graded. The langth will not.

No elements selected

Solect the ellomerts from the list ar

b$)$ Draw the Free Body Diagram for Block AA$.$

Draw the vectors ending at either the silver dot or red dot on block AA$.$ The location of the ending point as well as the orientation of your vectors will be graded. The length will not.

c$)$Draw the Free Body Diagram for Block BB$.$

Draw the vectors ending at either the silver dot or red dot on block BB$.$ The location of the ending point as well as the orientation of your vectors will be graded. The length will not.

d$)$If Block AA slips first, what is the value of applied force PP when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

e$)$If Block AA slips first, what is the value of the friction force on Block AA$,$ otherwise known as FAFA, when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

f$)$If Block AA slips first, what is the value of the normal force on Block AA$,$ otherwise known as NANA, when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

g$)$If Block AA slips first, what is the value of the friction force on Block BB$,$ otherwise known as FBFB$,$ when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

h$)$If Block AA slips first, what is the value of the normal force on Block BB$,$ otherwise known as NBNB$,$ when slippage occurs?

Express your answer to three significant figures and include the appropriate units

i$)$If Block BB slips first, what is the value of applied force PP when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

j$)$If Block BB slips first, what is the value of the friction force on Block AA$,$ otherwise known as FAFA, when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

Part K $-$ Part K

If Block BB slips first, what is the value of the normal force on Block AA$,$ otherwise known as NANA, when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

NANA $=$

nothing

NN

SubmitRequest$$Answer

Part L $-$ Part L

If Block BB slips first, what is the value of the friction force on Block BB$,$ otherwise known as FBFB$,$ when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

FBFB $=$

nothing

NN

SubmitRequest$$Answer

Part M $-$ Part M

If Block BB slips first, what is the value of the normal force on Block BB$,$ otherwise known as NBNB$,$ when slippage occurs?

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

NBNB $=$

nothing

NN

SubmitRequest$$Answer

Part N $-$ Part N

If applied force PP were to be gradually raised, until a block started slipping, which block would slip first?

Block AABlock BBBlocks AA and BB would slip simultaneously.Neither block can slip.

SubmitRequest$$Answer

Part O $-$ Part O

What is the largest value of PP that can be applied to pin CC of the linkage without causing the blocks to move?

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

PmaxPmax $=$
