Question: Two C capacitors are connected in series to a V voltage battery as shown in the figure (picture 3). In one of the capacitors a

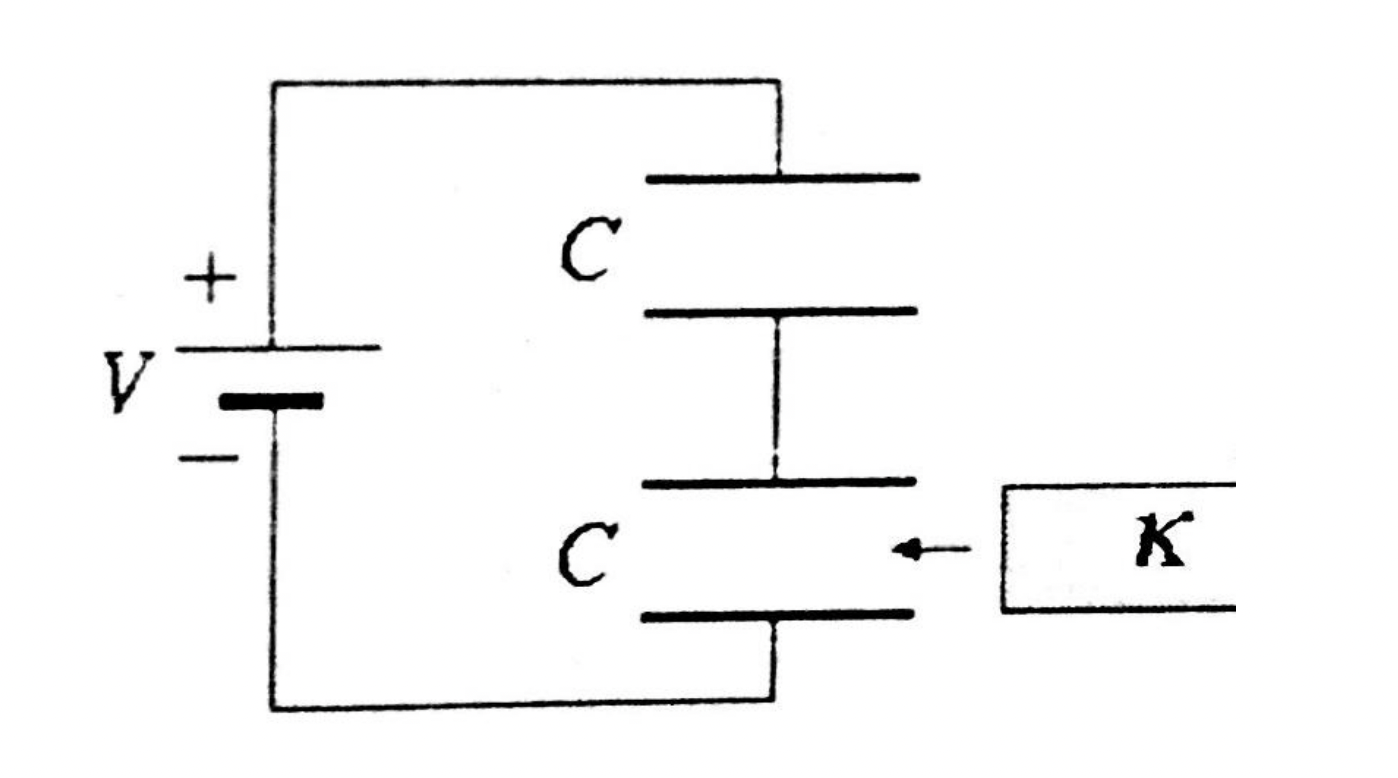

Two C capacitors are connected in series to a V voltage battery as shown in the figure (picture 3). In one of the capacitors a dielectric constant block ? is inserted, filling all the space between its plates.

a) Show that the change in total stored energy is (picture 1)

as shown in the figure (picture 3). In one of the capacitors

K CV2 A(K+1K - AQ CV. 2(k + 1+ C V 1.HI C K

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
