Question: Two forces act on the rectangular plate as shown. Reduce this force system to an equivalent force - couple system acting at point O .

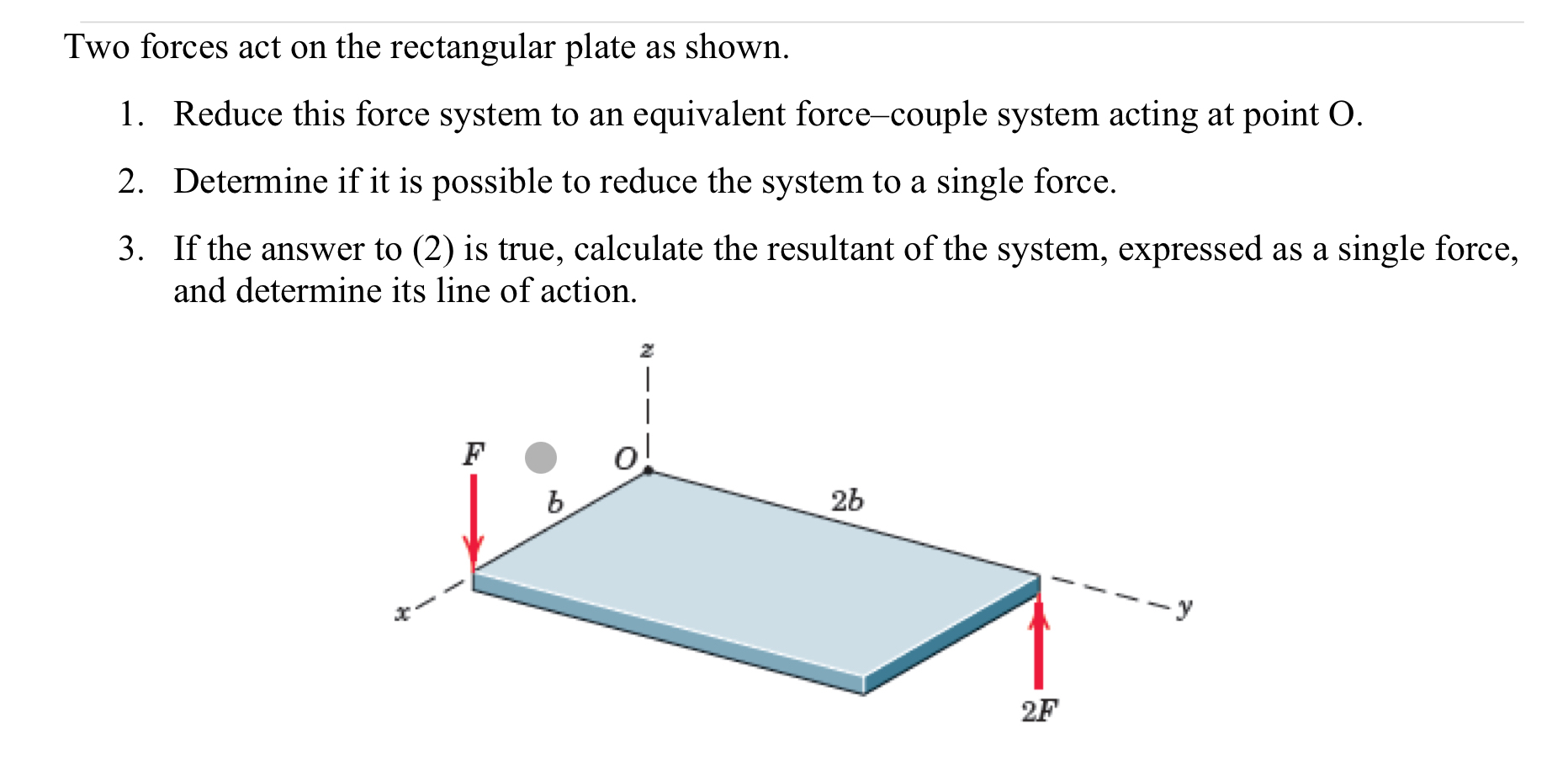

Two forces act on the rectangular plate as shown.
Reduce this force system to an equivalent force-couple system acting at point O .
Determine if it is possible to reduce the system to a single force.
If the answer to (2) is true, calculate the resultant of the system, expressed as a single force, and determine its line of action.
Two forces act on the rectangular plate as shown.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
