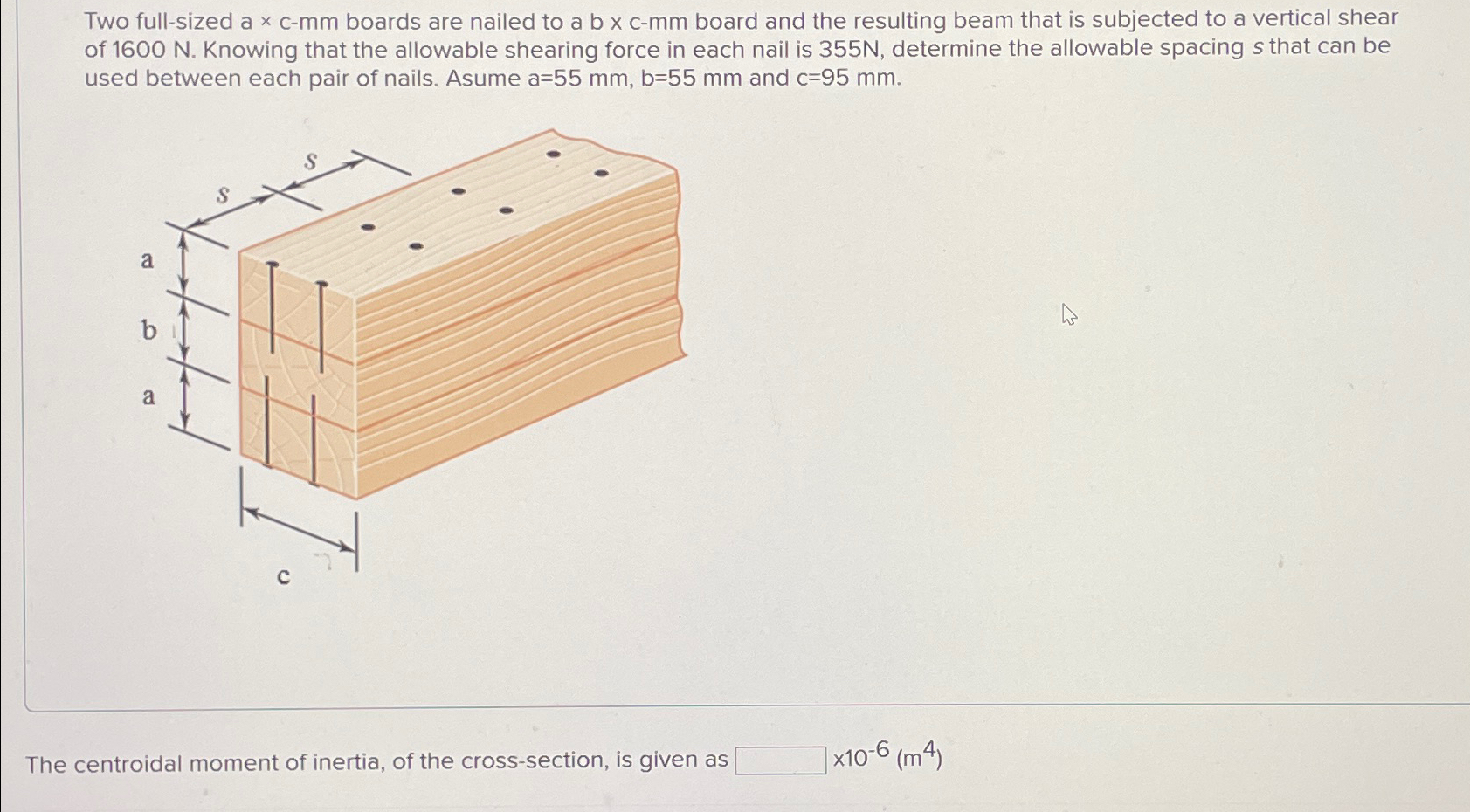

Question: Two full - sized a c - m m boards are nailed to a b c - m m board and the resulting beam that

Two full-sized a c-mm boards are nailed to abc-mm board and the resulting beam that is subjected to a vertical shear of 1600N. Knowing that the allowable shearing force in each nail is 355N, determine the allowable spacing s that can be used between each pair of nails. Asume a=55mm,b=55mm and c=95mm.
The centroidal moment of inertia, of the cross-section, is given as 10-6(m4)
Please show all work
Two full - sized a c - m m boards are nailed to a
