Question: Two L 4 4 1 2 - in . angles are welded to a steel plate as shown in the figure, where h = 2

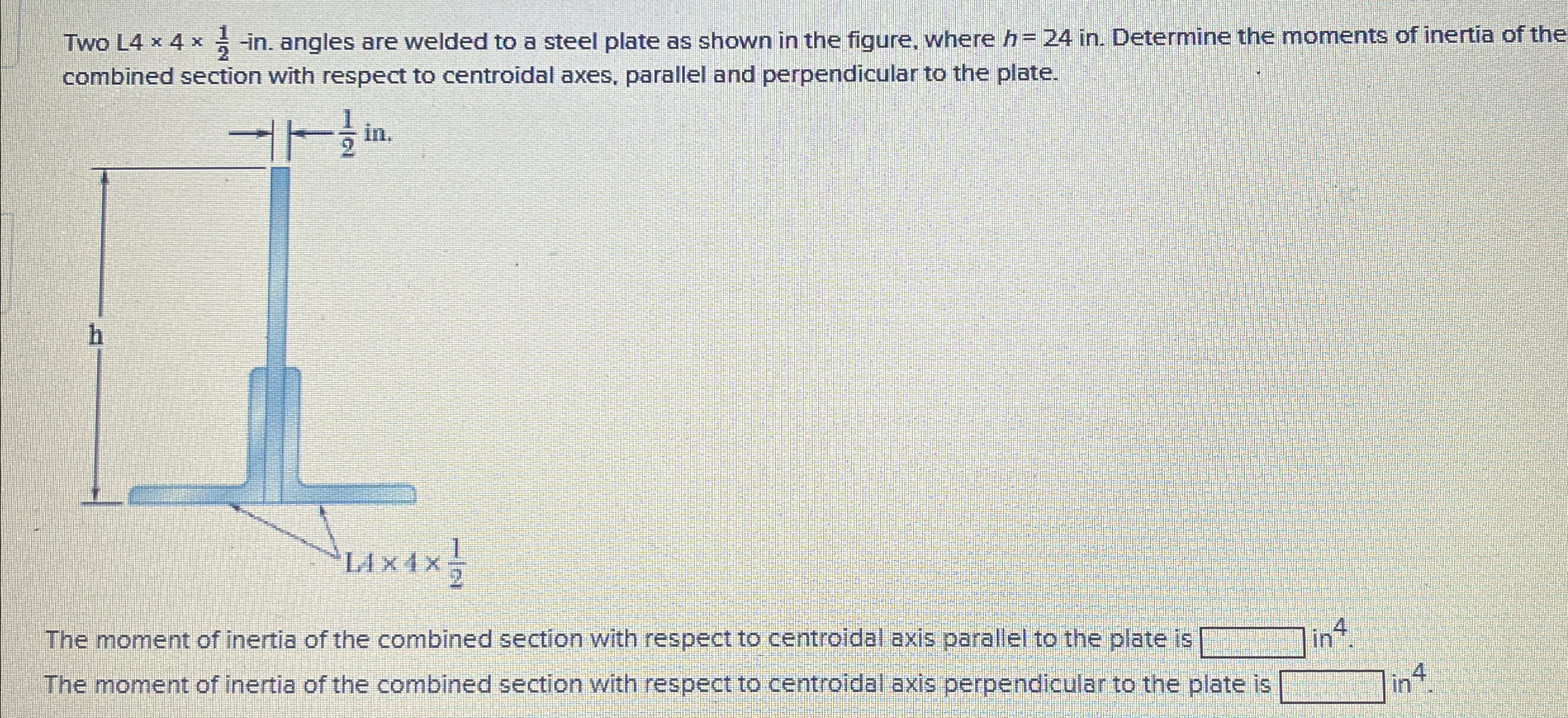

Two L4412-in. angles are welded to a steel plate as shown in the figure, where h=24 in. Determine the moments of inertia of the combined section with respect to centroidal axes, parallel and perpendicular to the plate.
The moment of inertia of the combined section with respect to centroidal axis parallel to the plate is in ?4.
The moment of inertia of the combined section with respect to centroidal axis perpendicular to the plate is in ?4.
Two L 4 4 1 2 - in . angles are welded to a steel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
