Question: Two pipelines containing oil are connected by a differential manometer, as shown below. The pressure in pipe A is 1 2 psi. Determine the pressure

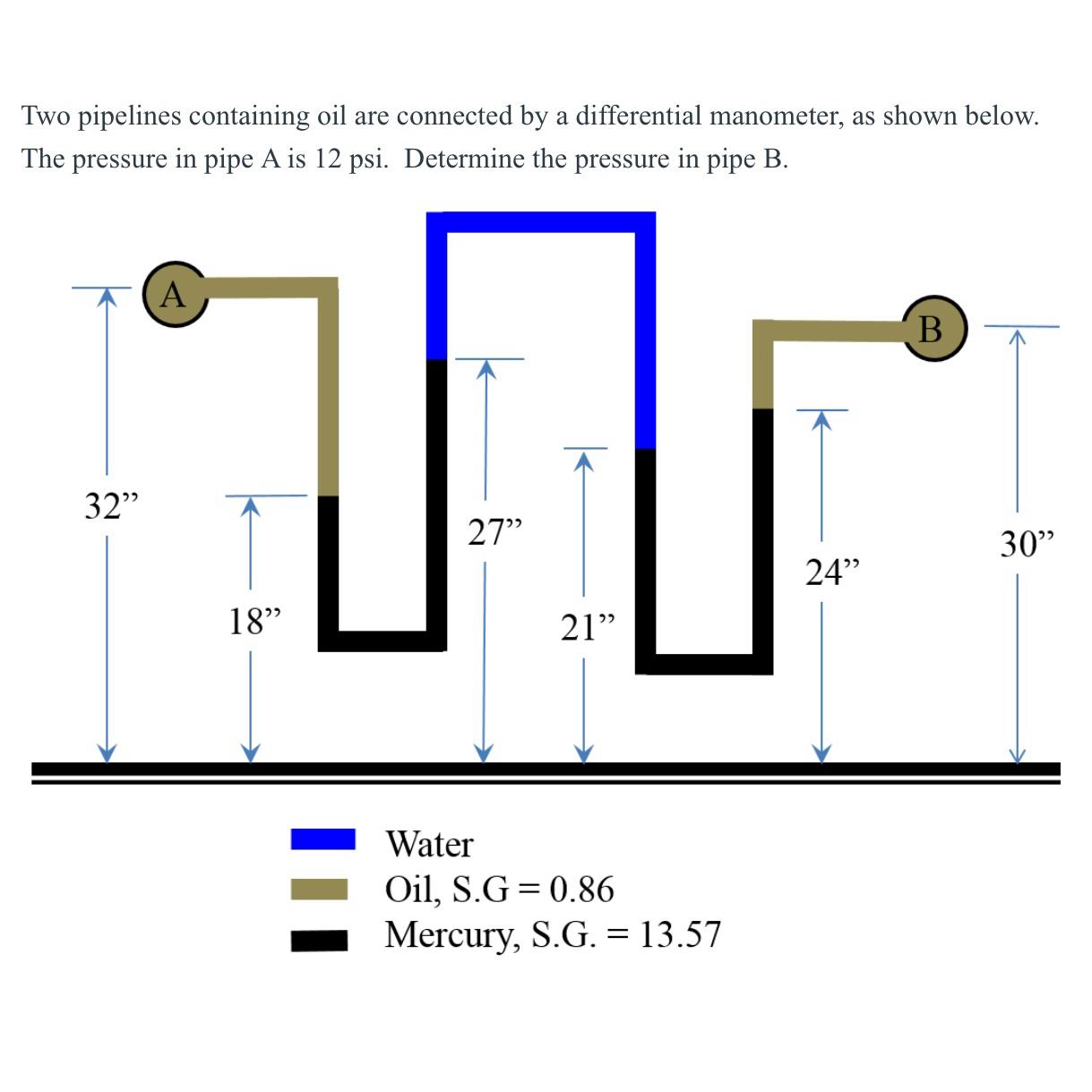

Two pipelines containing oil are connected by a differential manometer, as shown below. The pressure in pipe A is 12 psi. Determine the pressure in pipe B.
Two pipelines containing oil are connected by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
