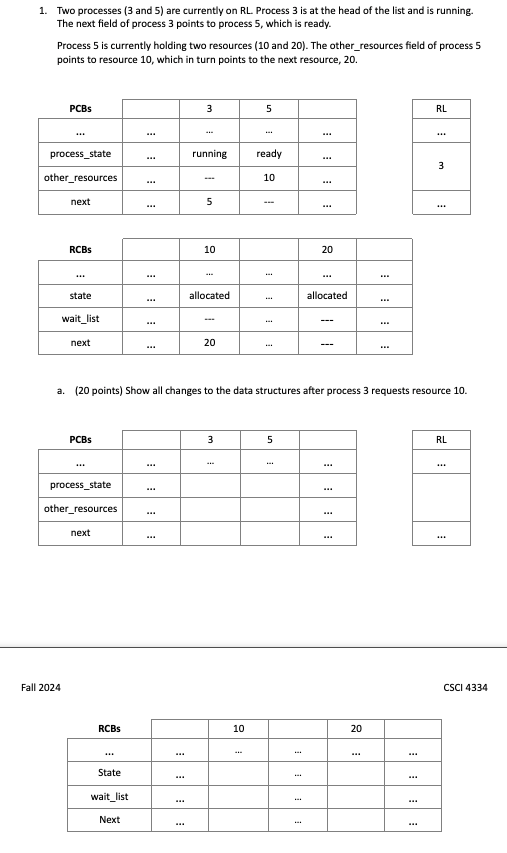

Two processes $(3$ and $5)$ are currently on RL$.$ Process $3$ is at the head of the list and is running.

The next field of process $3$ points to process $5,$ which is ready.

Process $5$ is currently holding two resources $(10$ and $20).$ The other$\_$resources field of process $5$

points to resource $10,$ which in turn points to the next resource, $20.$

a$.(20$ points$)$ Show all changes to the data structures after process $3$ requests resource $10.$

Fall $2024$
