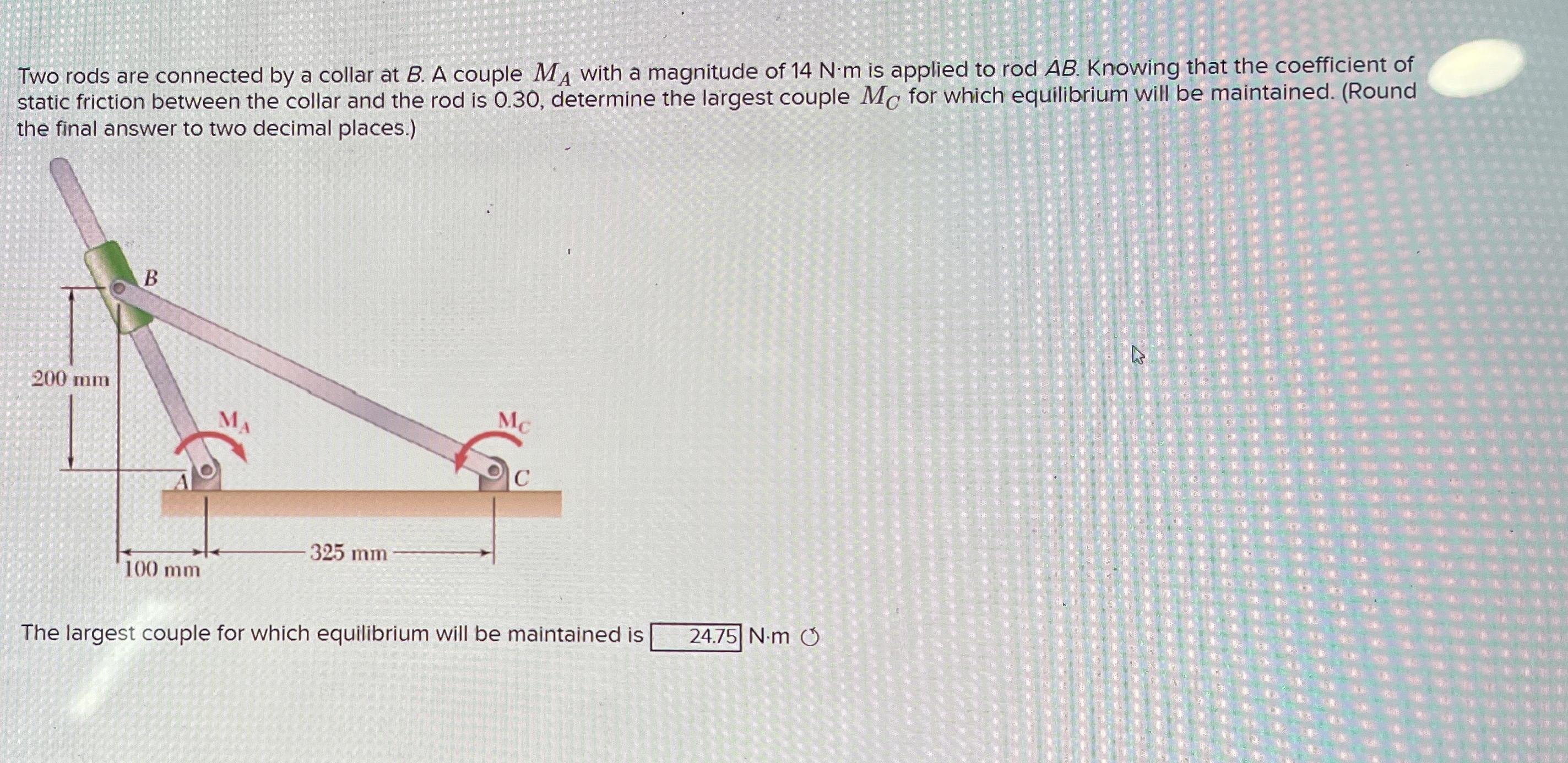

Question: Two rods are connected by a collar at B . A couple M A with a magnitude of 1 4 N * m is applied

Two rods are connected by a collar at B. A couple MA with a magnitude of 14N*m is applied to rod AB. Knowing that the coefficient of static friction between the collar and the rod is 0.30, determine the largest couple MC for which equilibrium will be maintained. (Round the final answer to two decimal places.)
The largest couple for which equilibrium will be maintained is Nm O
Two rods are connected by a collar at B . A
