Question: Two rods are connected by a slider block as shown. Neglecting the effect of friction, determine the couple M A required to hold the system

Two rods are connected by a slider block as shown. Neglecting the effect of friction, determine the couple MA required to hold the system in equilibrium.

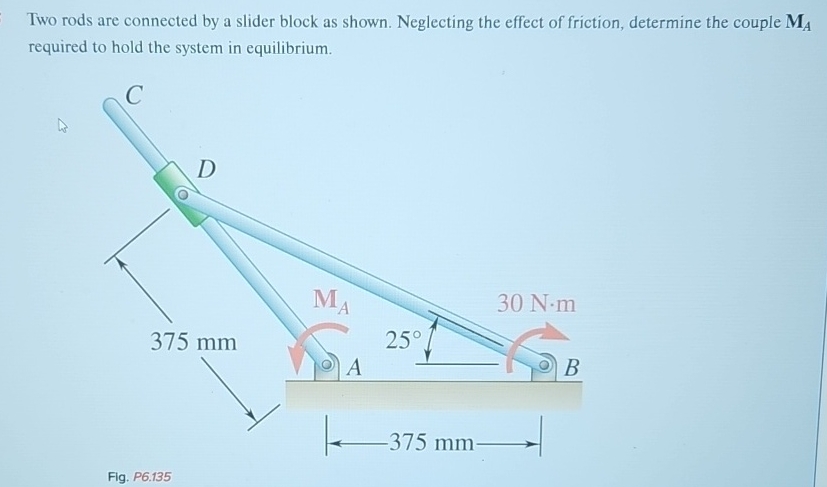

Fig. P6.135
Two rods are connected by a slider block as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
