Question: Two small channel sections DF and EHhave been welded to the unform beam A B of weingh W = 3 kN to moment olagams for

Two small channel sections DF and EHhave been welded to the unform beam AB of weingh W=3 kN to moment olagams for team Afi, (b) determine the maxmum abselute values of the shear and bending moment in the beam.
Two small channel sections DF and EHhave been

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

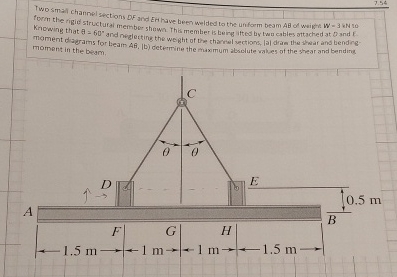

Two small channel sections DF and EH have been welded to the uniform beam AB of weight W = 3kN to form the rigid structural member shown. This member is being lifted by two cables attached at D and...
