Question: Two three - phase wye - connected loads are in parallel across a three - phase supply. The first load draws a phase current of

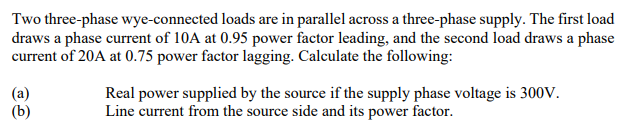

Two three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a phase current of 10 A at 0.95 power factor leading, and the second load draws a phase current of 20 A at 0.75 power factor lagging. Calculate the following:
(a) Real power supplied by the source if the supply phase voltage is 300 V .
(b) Line current from the source side and its power factor.
Two three - phase wye - connected loads are in
