Question: Two wires AB and BC support a load W , as shown. If each wire has an allowable tensile strength of 1 0 0 MPa

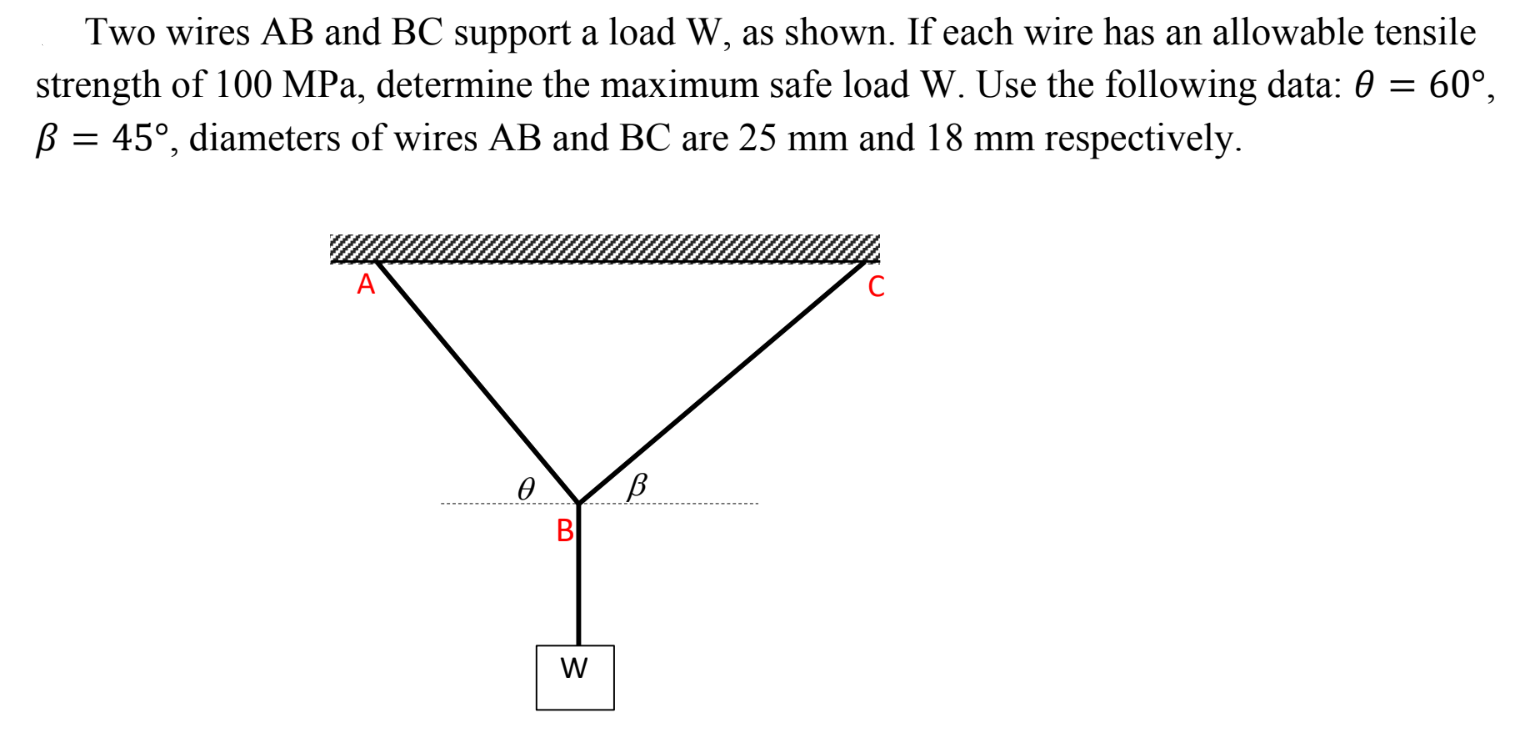

Two wires AB and BC support a load W , as shown. If each wire has an allowable tensile strength of 100 MPa , determine the maximum safe load W . Use the following data: =60,=45, diameters of wires AB and BC are 25 mm and 18 mm respectively.
Two wires AB and BC support a load W , as shown.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
