Question: TYPICAL BEAM SECTION & STRAND PATTERN Where is the centroid of this girder located? What is the approximate unit weight ( lbs / LF )

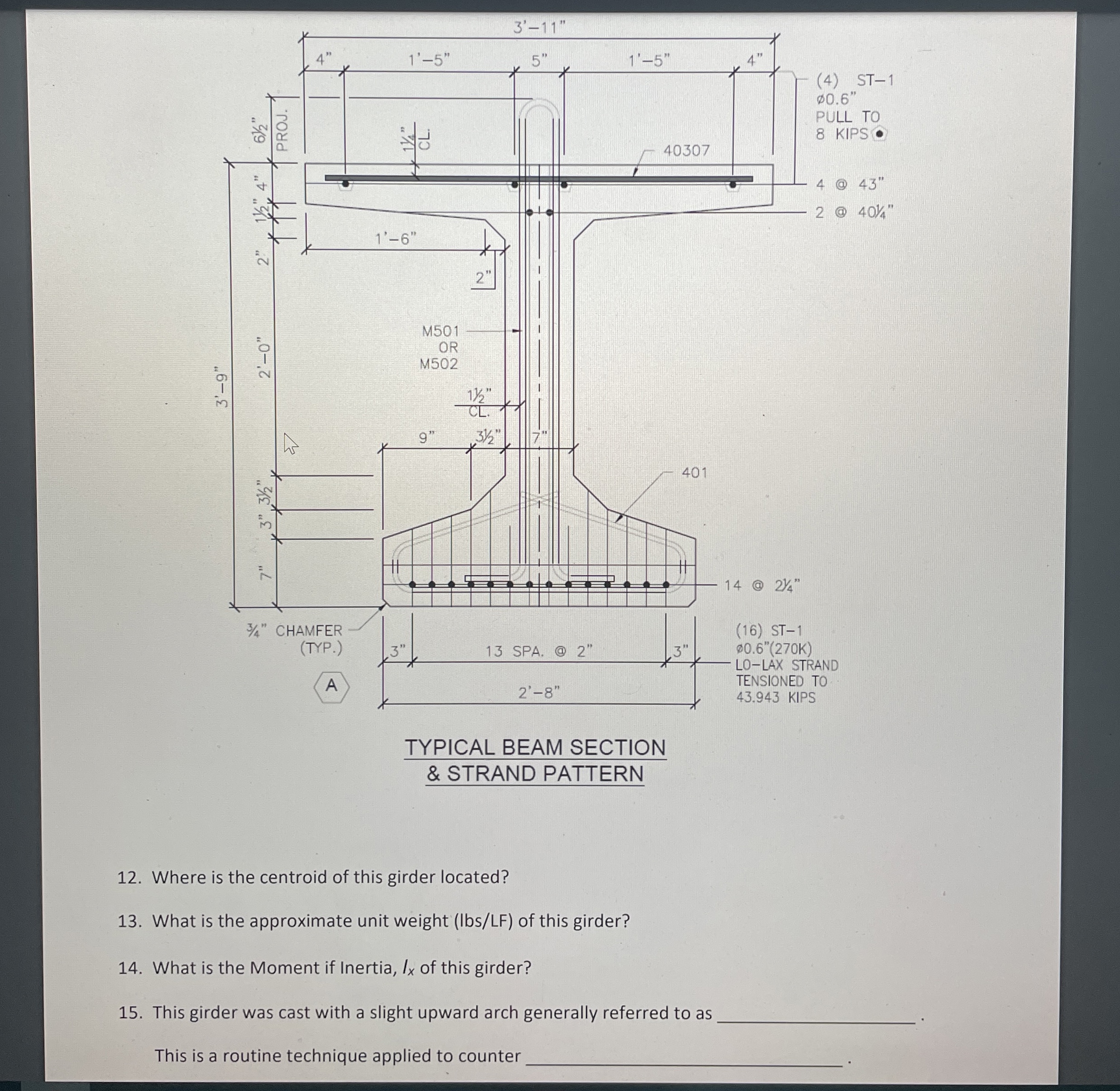

TYPICAL BEAM SECTION
& STRAND PATTERN
Where is the centroid of this girder located?
What is the approximate unit weight (lbs/LF) of this girder?
What is the Moment if Inertia, Ix of this girder?
This girder was cast with a slight upward arch generally referred to as
This is a routine technique applied to counter
TYPICAL BEAM SECTION & STRAND PATTERN Where is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
