Question: Unit 6 - ELECTRICITY & MAGNETISM Find all the missing values in the following circuit and indicate the direction of the current flow: V.= 1,

Unit 6 - ELECTRICITY & MAGNETISM Find all the missing values

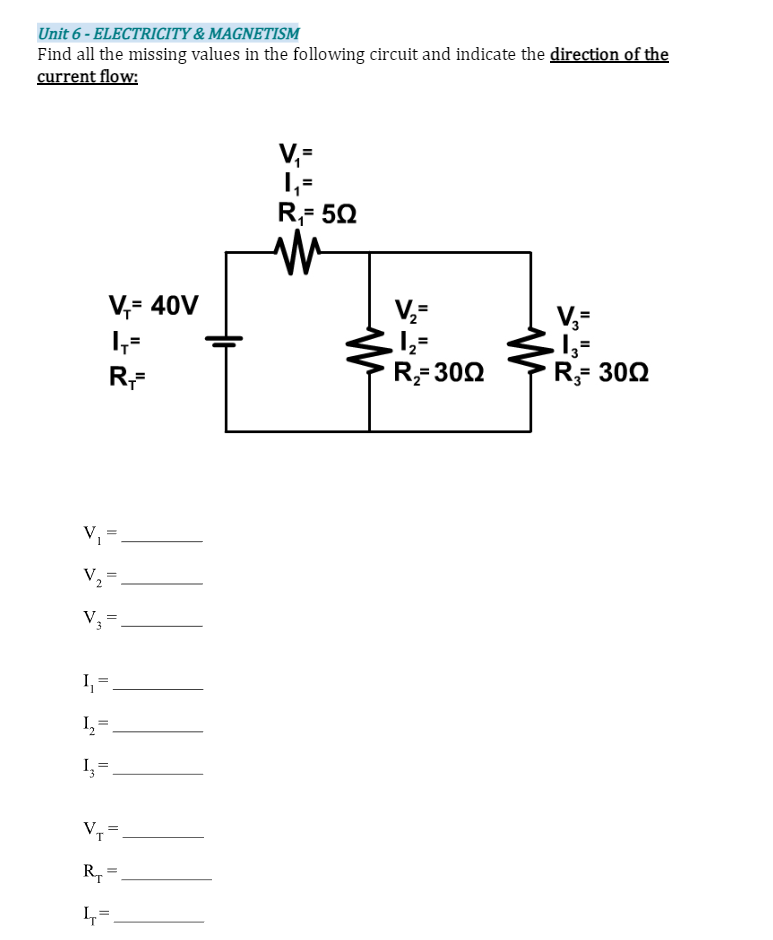

Unit 6 - ELECTRICITY & MAGNETISM Find all the missing values in the following circuit and indicate the direction of the current flow: V.= 1, = R,= 50 V.= 40V V3= IT= . 12= R,=300 R,= 300 V. V. I,= RT =
