Question: ( unit: mm ) Given Hole: 5 . 5 { : [ + 0 . 0 0 6 ] - 0 . 0 1 0

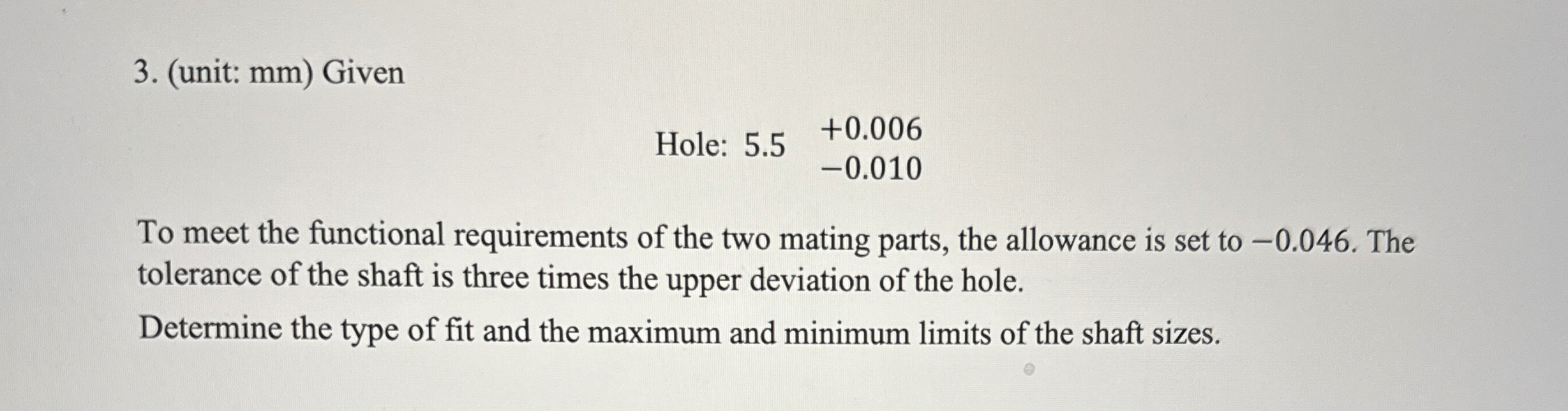

(unit: mm) Given
Hole: 5.5{:[+0.006]-0.010
To meet the functional requirements of the two mating parts, the allowance is set to -0.046. The
tolerance of the shaft is three times the upper deviation of the hole.
Determine the type of fit and the maximum and minimum limits of the shaft sizes.
( unit: mm ) Given Hole: 5 . 5 { : [ + 0 . 0 0 6
