UPGMA: you'll write the program to build phylogenetic trees from distance matrices and display them. Your program should have the functions below. You may add additional helper functions if you wish. In any case, test every function before you move on to the next function.

findClosestPair$($ speciesList, Distances $).$ This function takes as input a species list $($a list of trees represented as tuples$)$ and a distance dictionary and returns the pair of different trees in the speciesList that have the least distance between them. Let's say we have two trees from speciesList called treei and treej. Remember that to get the distance between them, you can access the Distances dictionary like this:

$$Distances$[($treei$,$ treej$)]$

findClosestPair should consider all possible pairs of trees in speciesList, and return the pair with the minimum distance as a tuple $($e$.$g$.$ if treei and treej happened to be the closest pair, we would return $($treei$,$treej$).$

updateDist$($ speciesList, Distances, newTree $).$ This function takes the current list of trees called speciesList, the Distances dictionary, and the new tree that we have just built by merging the closest pair of species $($as found by findClosestPair$).$ This function does not return anything, but it does modify the Distances dictionary. Note that the two species trees that were merged are assumed to have been removed from the speciesList already but newTree has not yet been added to that speciesList. This function changes the Distances dictionary by adding the distances between newTree and all of the other trees in speciesList. This function is short and sweet $($about $8-10$ lines of code suffice!$).$ Here are the parts:

The newTree is the merger of two trees. We can easily get these trees and give them names; let's call them treeI and treeJ.

The distance between newTree and any other tree, call it treeK, in the speciesList is computed as follows $($note that we wrote a function leafCount in the PhylogeneticTrees.py homework$)$:

def leafCount$($Tree$)$:

$\text{'}\text{'}\text{'}$counts the number of leaf nodes in the tree.$\text{'}\text{'}\text{'}$

if not Tree:

return $0$

if not Tree$[1]$ and not Tree$[2]$: # If both left and right subtrees are empty

return $1$

return leafCount$($Tree$[1])+$ leafCount$($Tree$[2])$

leafCount$($treeI$)/($leafCount$($treeI$)+$ leafCount$($treeJ$))*($the distance from treeI to treeK$)+$ leafCount$($treeJ$)/($leafCount$($treeI$)+$ leafCount$($treeJ$))*($the distance from treeJ to treeK$).($Remember to multiply integers by $1\mathrm{.}0$ before dividing in order to make sure that you don't get integer division unintentionally!$)$

upgma$($ speciesList, Distances $).$ This function takes as input the the speciesList and the distance dictionary and runs the algorithm that we described in the text. It repeatedly does the following until there is only one tree in the speciesList, at which point that phylogenetic tree is returned.

Find the closest pair of species in the speciesList $($using findClosestPair$).$

Merge these two species trees into a new tree. The root of that tree is a number which is half the distance between the two species trees being merged. Update the speciesList by removing the two species. The function speciesList.remove$($blah$)$ will remove the item named blah from the list named speciesList. Update the distance dictionary by calling updateDist. Add the new merged tree into the speciesList.

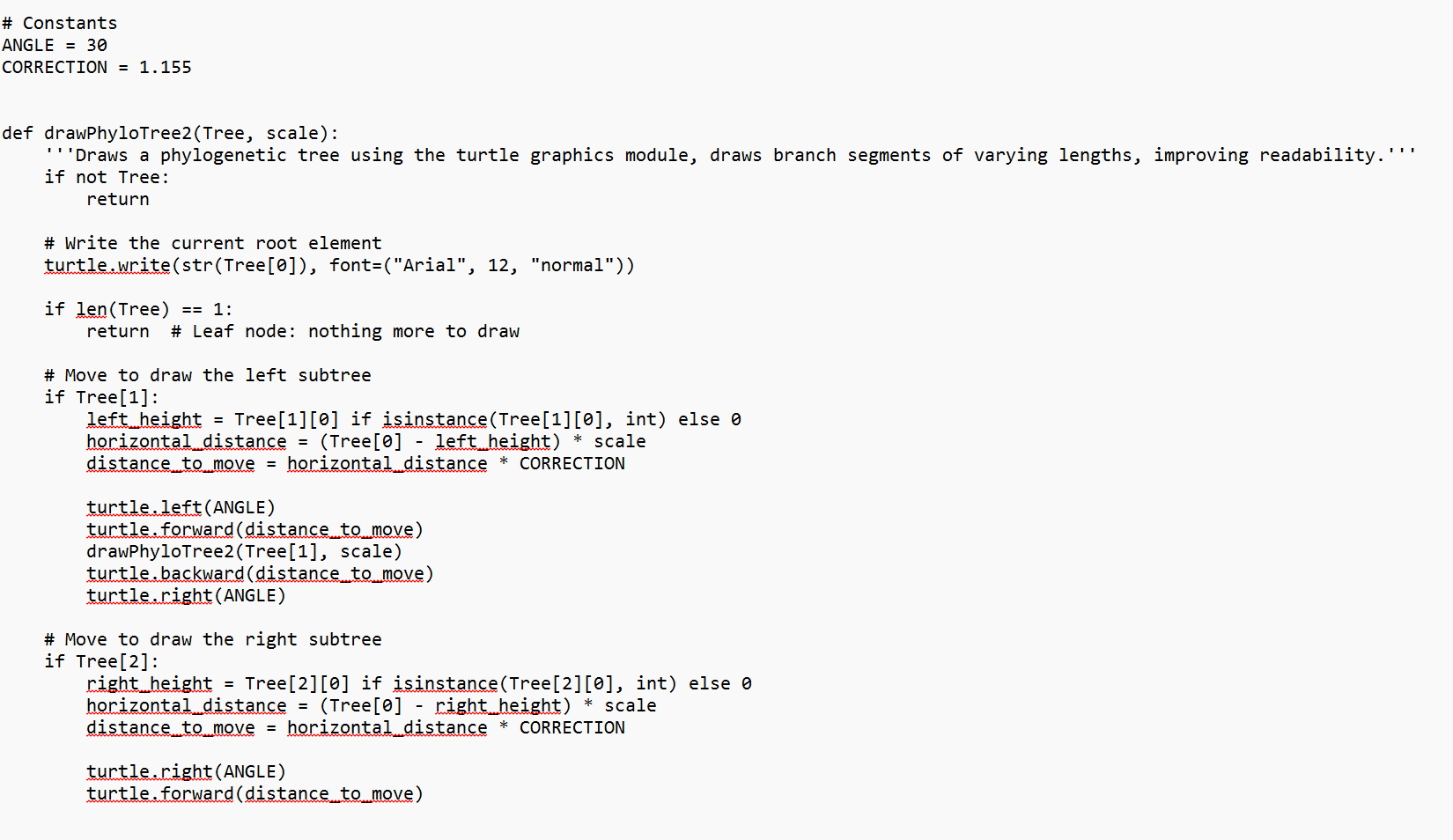

You can use the drawPhyloTree$2$ function you've previously written to display these trees. drawPhyloTree$2$ finds the height value at each internal node, and writes that on the tree it's drawing. When you get numbers with many decimal places, as we will here, this can make the diagram harder to read.

You can slightly modify your drawPhyloTree$2$ function to fix this. We had been using the built$-$in str$()$ function. Instead, we can use a function called format. Format allows us to take a decimal number, round it to some number of decimal places, and convert it to a string. For example, this will round to three decimal places:

$>>>$ format$(\mathrm{.}987564,"\mathrm{.}3$f$")$

$\text{'}0\mathrm{.}988\text{'}$

Here's an example of our code running on test data:

$>>>$ groodiesTree$=$upgma$($groodiesList$,$ groodiesMatrix$)$

$>>>$ drawPhyloTree$2($groodiesTree$,25)$
