Question: urgent!!!! DC - DC converter: A Solar PV array consisting of five PV modules connected in series then this array is connected to a resistive
urgent!!!!

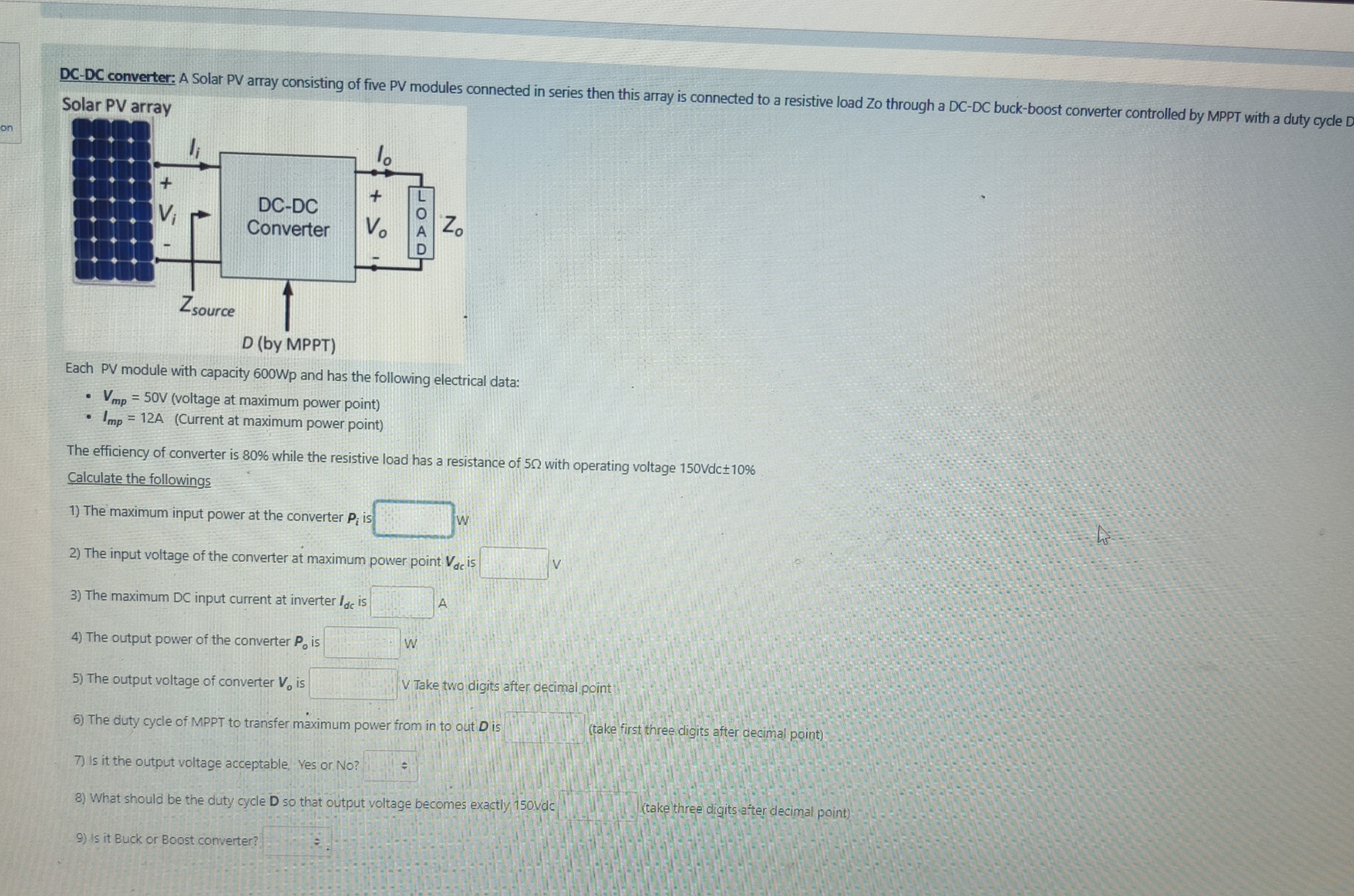

DCDC converter: A Solar PV array consisting of five PV modules connected in series then this array is connected to a resistive load Zo through a DCDC buckboost converter controlled by MPPT with a duty cycle D
Each PV module with capacity Wp and has the following electrical data:
voltage at maximum power point
Current at maximum power point
The efficiency of converter is while the resistive load has a resistance of with operating voltage
Calculate the followings
The maximum input power at the converter is w
The input voltage of the converter at maximum power point is
The maximum input current at inverter is
The output power of the converter is w
The output voltage of converter is Take two digits after decimal point
The duty cycle of MPPT to transfer maximum power from in to out is take first three digits after decimal point
Is it the output voltage acceptable, Yes or No
What should be the duty cycle D so that output voltage becomes exactly Vdc take three digits atter decimal point
Is it Buck or Boost converter?
