Question: URGENT ( please solve it correctly ) Problem # 1 : ( 2 5 points ) The following electrical System ( Figure 1 ) is

URGENT (please solve it correctly)
Problem # 1: (25 points)

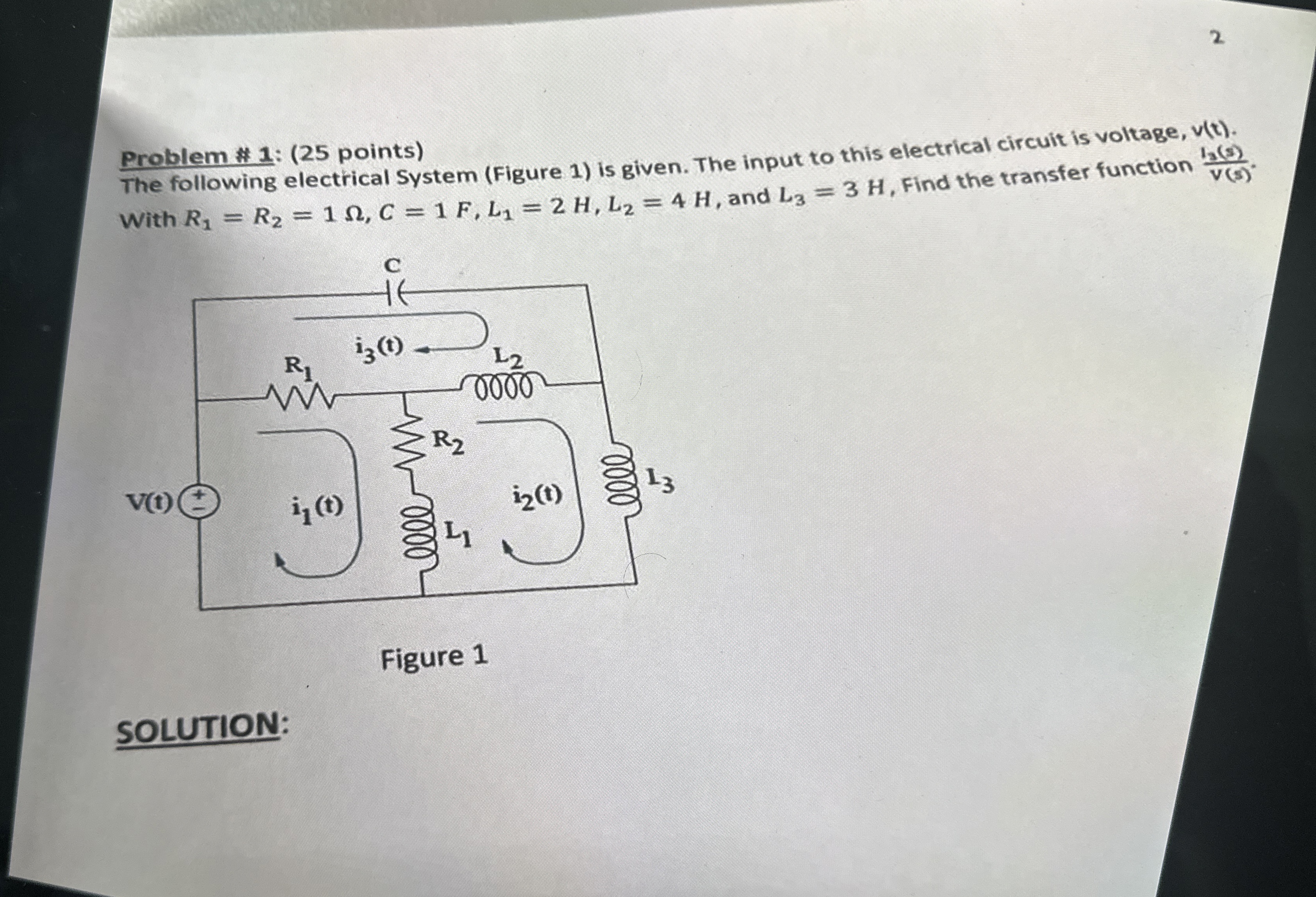

The following electrical System (Figure 1) is given. The input to this electrical circuit is voltage, v(t). With R1=R2=1,C=1F,L1=2H,L2=4H, and L3=3H, Find the transfer function l3(s)v(s).
SOLUTION:
URGENT ( please solve it correctly ) Problem # 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
