Question: Use MATLAB to compute the voltage and current waveforms as functions along a transmission line. Write a MATLAB code to compute the voltage and current

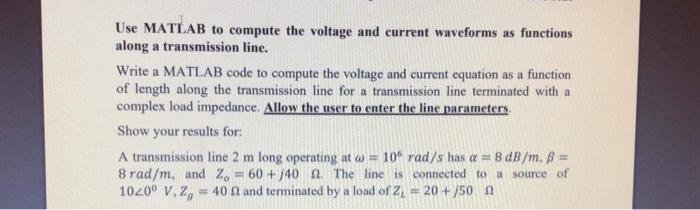

Use MATLAB to compute the voltage and current waveforms as functions along a transmission line. Write a MATLAB code to compute the voltage and current equation as a function of length along the transmission line for a transmission line terminated with a complex load impedance. Allow the user to enter the line parameters, Show your results for: A transmission line 2 m long operating at w = 10% rad/s has a = 8 dB/m. B = 8 rad/m, and Z. = 60+ j40 2. The line is connected to a source of 1020 V.2, = 40 A and terminated by a load of 2. = 20+50
