Question: Use ONLY the pole method Determine the maximum and minimum principal stresses for the soil elements given below, and the direction of the major principal

Use ONLY the pole method

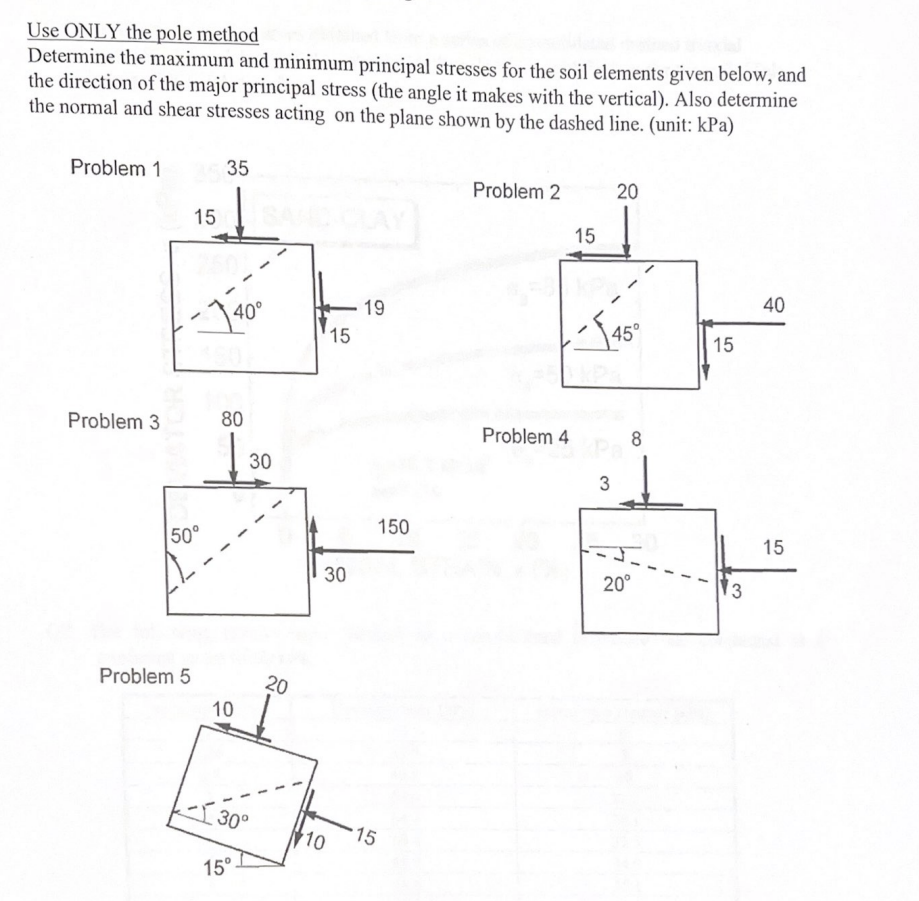

Determine the maximum and minimum principal stresses for the soil elements given below, and the direction of the major principal stress (the angle it makes with the vertical). Also determine the normal and shear stresses acting on the plane shown by the dashed line. (unit: kPa )
Problem *
Pro
Problem
Problem ^
Pro
Use ONLY the pole method Determine the maximum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
