Question: Use section method with joint method to compute the truss member force. ( a ) Find F J D F I E F C D

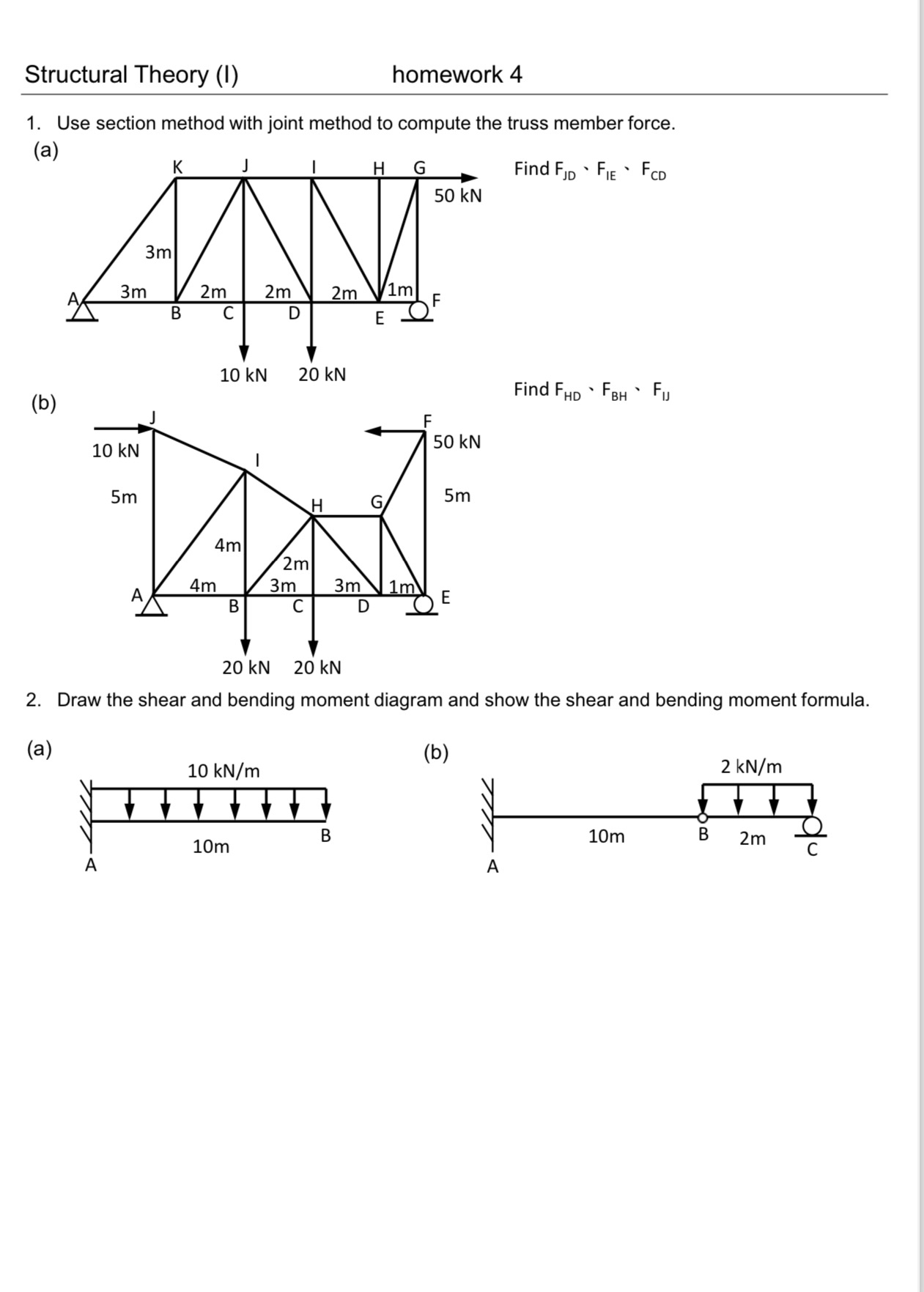

Use section method with joint method to compute the truss member force.
(a)
Find FJDFIEFCD
(b)
Find FHD*FBH*FIJ
Draw the shear and bending moment diagram and show the shear and bending moment formula.
(a)
(b)
Use section method with joint method to compute

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
