Question: Use the following information to answer problems 4, 5, 6, 7 and S. For the RIC circuit at the right R = 1.50 m(2, C

 Use the following information to answer problems 4, 5, 6, 7

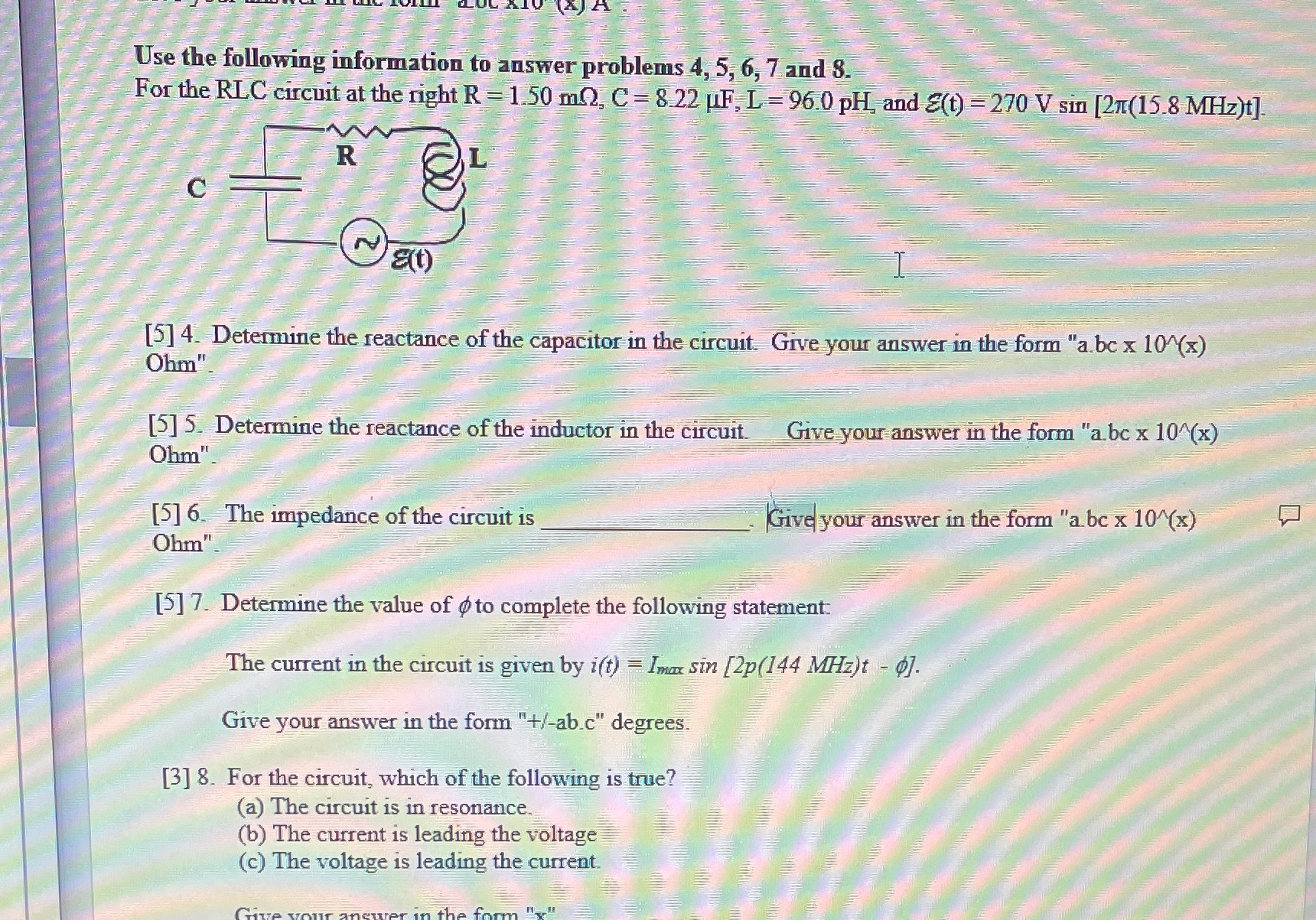

Use the following information to answer problems 4, 5, 6, 7 and S. For the RIC circuit at the right R = 1.50 m(2, C = 8.22 pIF, L = 96.0 pH, and S(t) = 270 V sin [2m(15.8 MHz)t] R E(t) [5] 4. Determine the reactance of the capacitor in the circuit. Give your answer in the form "a.bc x 10(x) Ohm" [5] 5. Determine the reactance of the inductor in the circuit. Give your answer in the form "abc x 10^(x) Ohm"_ [5] 6. The impedance of the circuit is Give your answer in the form "abc x 10"(x) Ohm" [5] 7. Determine the value of @ to complete the following statement. The current in the circuit is given by i(t) = Imax sin [2p(144 MHz)t - 0]. Give your answer in the form "+/-ab.c" degrees. [3] 8. For the circuit, which of the following is true? (a) The circuit is in resonance. (b) The current is leading the voltage (c) The voltage is leading the current
