Question: Use the force method of analysis. This includes a real and redundant case, drawing free body digrams and using integration tables HW 0 5 _

Use the force method of analysis. This includes a real and redundant case, drawing free body digrams and using integration tables HW05_06-01

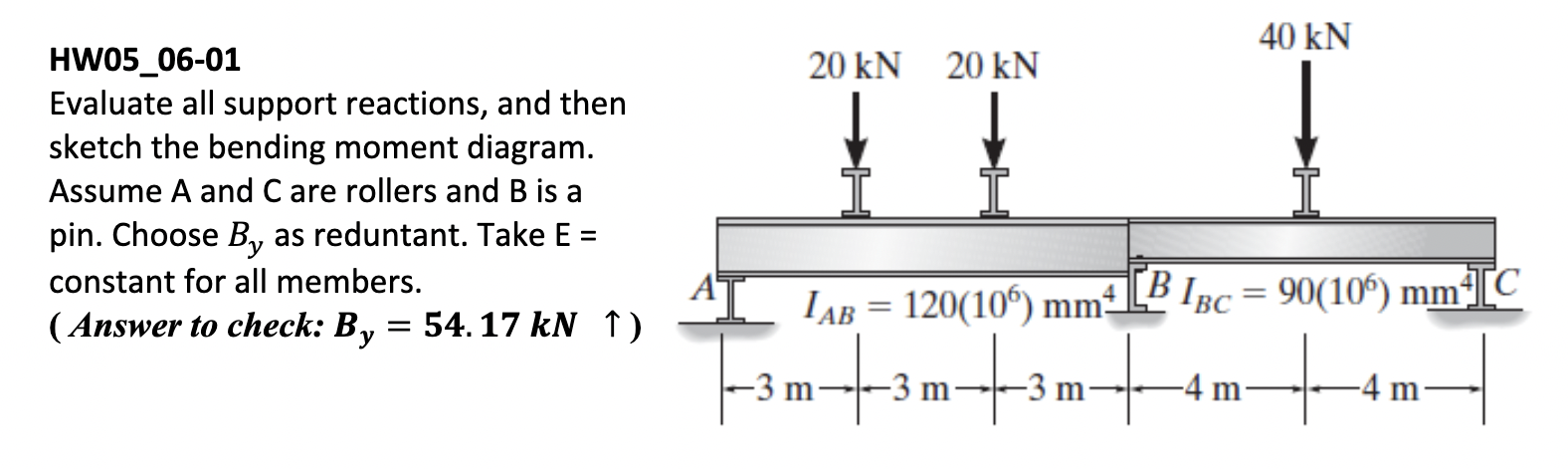

Evaluate all support reactions, and then
sketch the bending moment diagram.
Assume A and C are rollers and B is a
pin. Choose By as reduntant. Take E=
constant for all members.
( Answer to check: By=54.17kN
Use the force method of analysis. This includes a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
