Use the table below to plot the resource load chat and answer the questions below.

1.What is Activity G's updated Start Time (ES) and Revised Slack?

Start 8; Slack 0

Start 12; Slack - 4

Start 12; Slack 0

Start 8; Slack -4

2.Based on the resource constraint, the project will finish:

On time - day 12

Two days early - day 10

Two days late - day 14

Four days late - day 16

3. Activity F is scheduled after Activity E, even though, based on revised start times, they are both scheduled to start in time period 7, because F can only start once E is complete

E's duration is less than that of F

E's slack is smaller than that of F

E precedes F in the alphabet

4. Which activities are critical? All activities are now critical

All activities except A and C are critical

Only activities B, D, and E are critical

As two days of slack can be added to activity F, all activities except F are critical

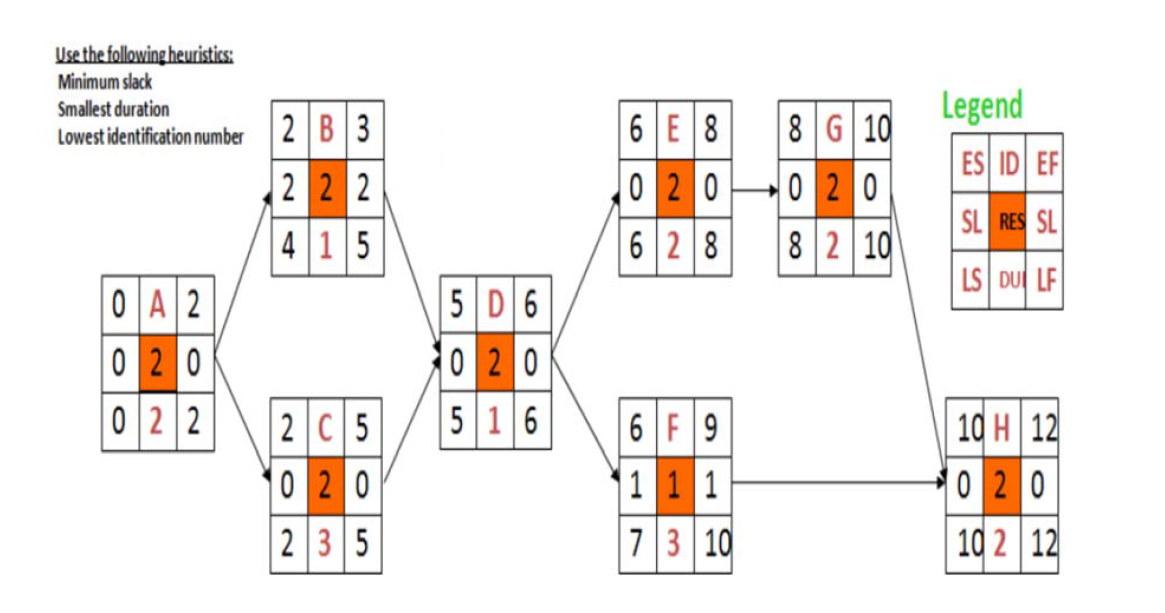

Use the following heuristics: Minimum slack Smallest duration Lowest identification number 2 B 3 2 2 2 Legend ESID EF 6 E 8 8 G 10 020 6020 628 8 2 10 SL RES SL 4 15 LS DU LE 0 A 2 0 20 5 D 6 020 51/6 022 2 C 5 0 2 0 235 6 F 9 1 1 1 7/3 10 10 H 12 1020 10 2 12
