Use these values with the worksheet below:

Name

$P1=30k,w1=3\frac{k}{f}t,P2=2\mathrm{.}5k,w2=400lb\frac{s}{f}t$

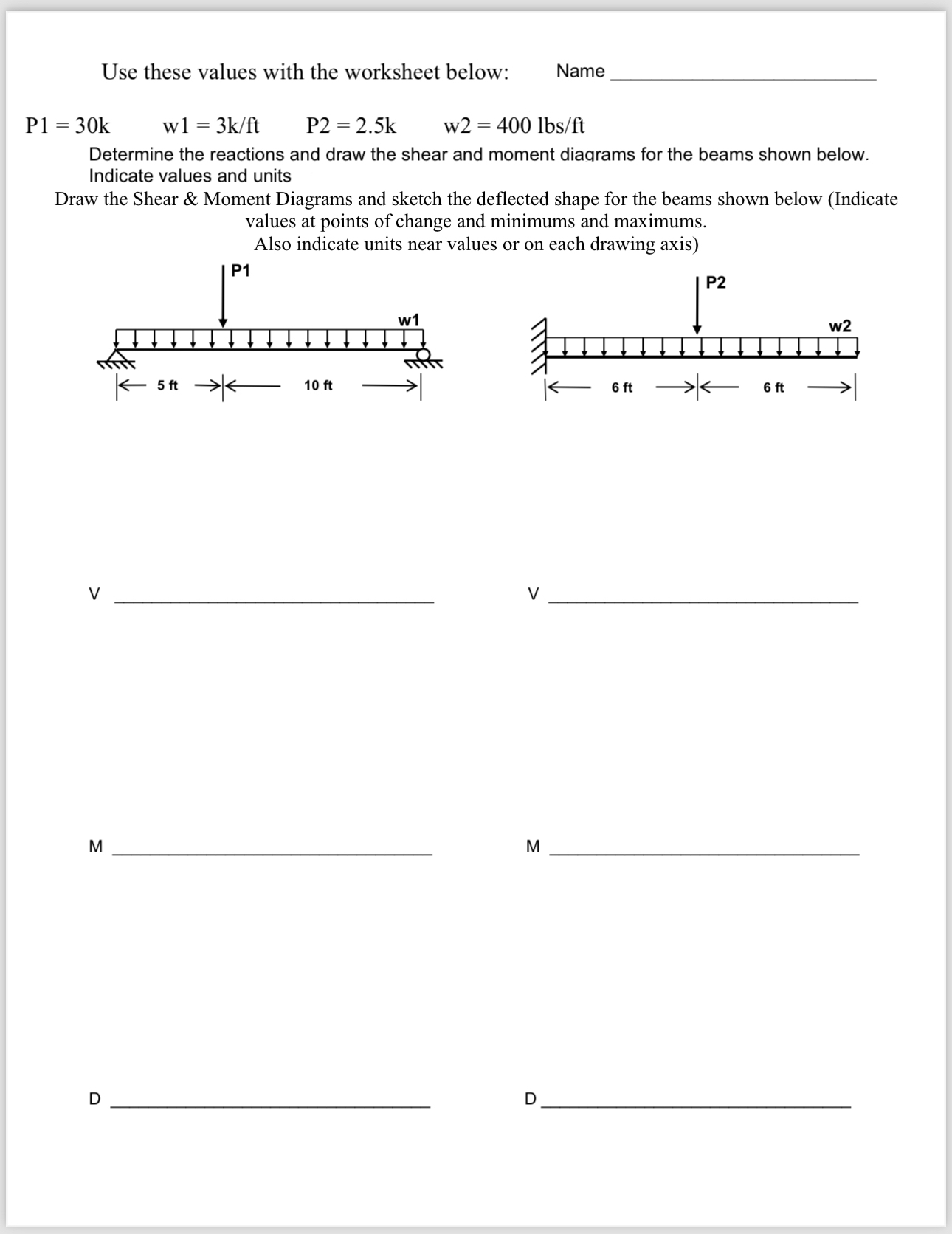

Determine the reactions and draw the shear and moment diaarams for the beams shown below. Indicate values and units

Draw the Shear & Moment Diagrams and sketch the deflected shape for the beams shown below $($Indicate values at points of change and minimums and maximums.

Also indicate units near values or on each drawing axis$)$

V

$1$

M

$1$

D

$[$
