Question: Use two significant digits in your calculation. For a soil element given below, by means of Mohr's circle of stress, determine: a ) Major and

Use two significant digits in your calculation. For a soil element given below, by means of Mohr's
circle of stress, determine:
a) Major and minor principal stresses.

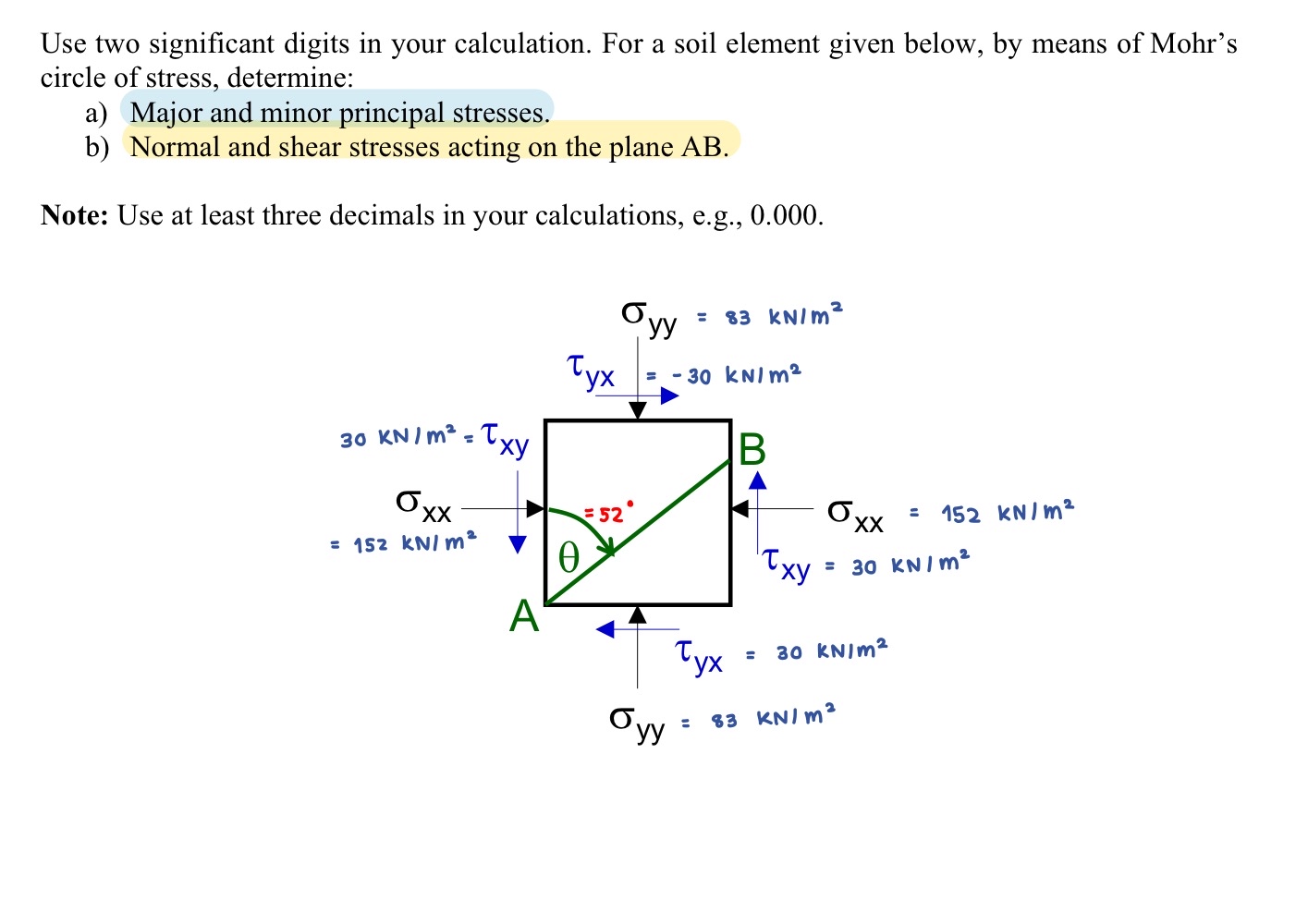

b) Normal and shear stresses acting on the plane AB .
Note: Use at least three decimals in your calculations, e.g.,0.000.
Use two significant digits in your calculation.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
