Question: Use virtual work method to solve for the vertical deflection at point B , C and D of the truss shown below. Note: vertical distance

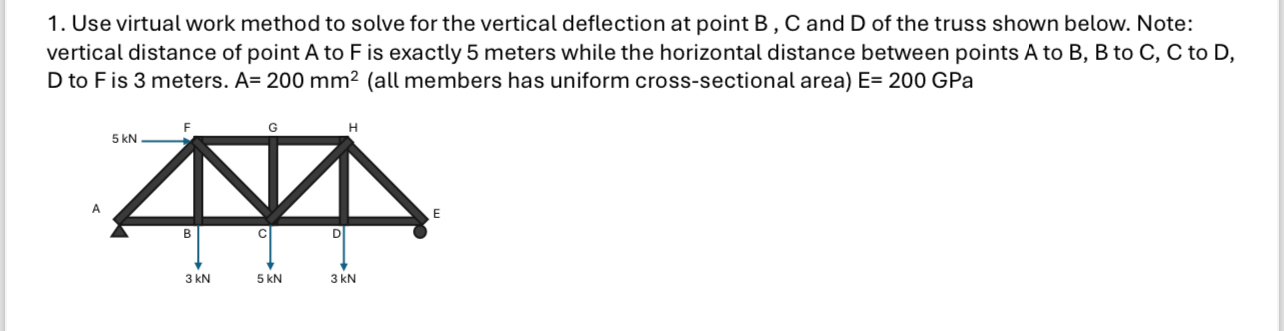

Use virtual work method to solve for the vertical deflection at point B, C and D of the truss shown below. Note:
vertical distance of point A to F is exactly 5 meters while the horizontal distance between points A to B,B to C,C to D,
D to F is 3 meters. A=200mm2(all members has uniform cross-sectional area)E=200GPa
