Question: Use virtual work method to solve the following problems: Problem 1 : Determine the slope at A and displacement at point C . EI is

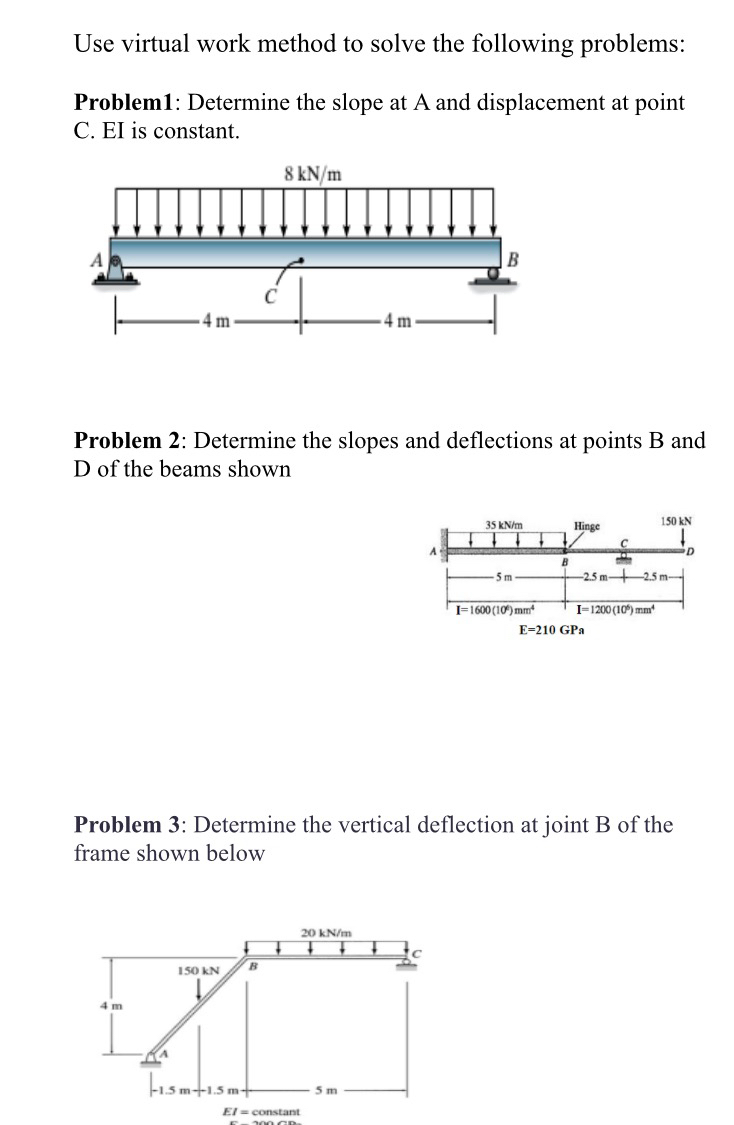

Use virtual work method to solve the following problems:
Problem 1: Determine the slope at A and displacement at point C. EI is constant.
Problem 2: Determine the slopes and deflections at points B and D of the beams shown
Problem 3: Determine the vertical deflection at joint B of the frame shown below
Use virtual work method to solve the following

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
