Question: Using a geometric deflection method ( double integration, moment area, or conjugate beam ) , solve for the deflections at A and E and the

Using a geometric deflection method (double integration, moment area, or conjugate beam),

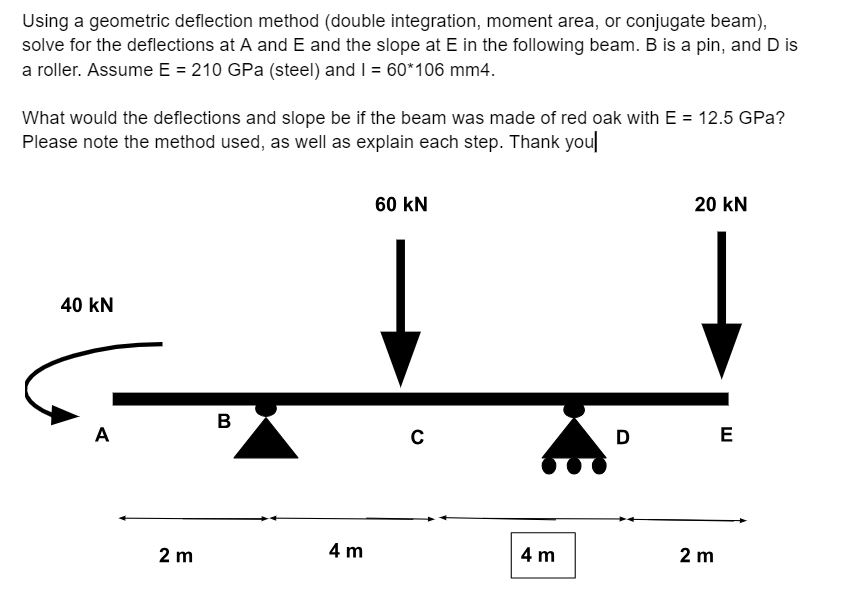

solve for the deflections at A and E and the slope at E in the following beam. B is a pin, and D is
a roller. Assume E=210GPa (steel) and I=60**106mm4.
What would the deflections and slope be if the beam was made of red oak with E=12.5GPa ?
Please note the method used, as well as explain each step. Thank youl
