Question: Using a ring collar the 7 5 - N force can act in the vertical plane at various angles . Determine the magnitude of the

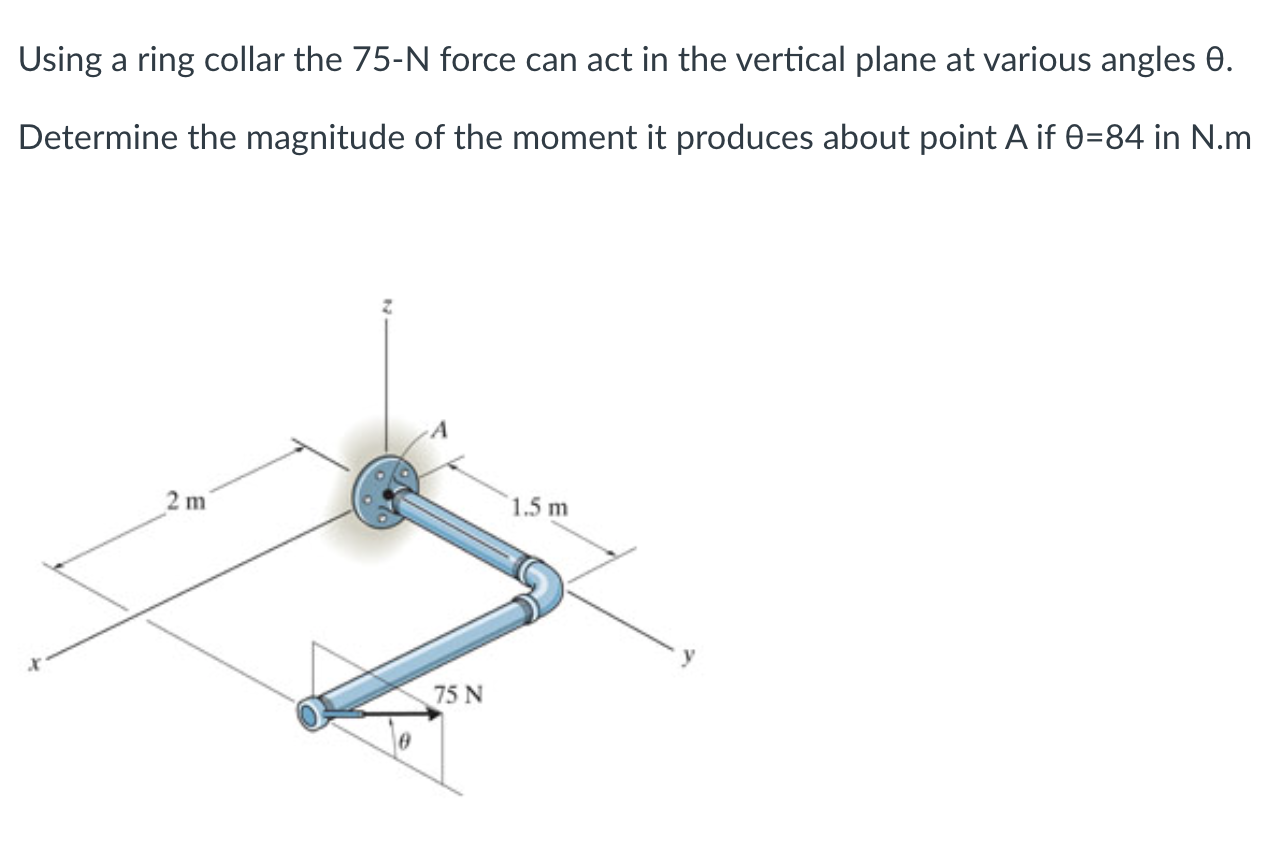

Using a ring collar the 75-N force can act in the vertical plane at various angles .
Determine the magnitude of the moment it produces about point A if =84 in N.m
Using a ring collar the 7 5 - N force can act in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Using a ring collar the 75-N force can act in the vertical plane at various angles . Determine the magnitude of the moment it produces about point A, plt the result of M (ordinate) versus (abscissa)...
