Using a table like that shown in Figure 1, calculate the product of the octal unsigned 6-bit integers 62 and 12 using the hardware described in Figure 2. You should show the contents of each register on each step

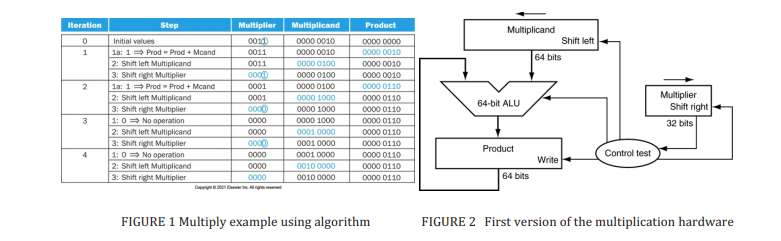

FIGURE 1 Multiply example using algorithm FIGURE 2 First version of the multiplication hardware \begin{tabular}{|c|c|c|c|c|} \hline Step & Action & Multiplier & Multiplicand & Product \\ \hline 0 & Initial Vals & 001010 & 000000110010 & 000000000000 \\ \hline 1 & lsb=0,noopLshiftMcandRshiftMplier & 001001000010010101 & 000000000000001001110100100010100100 & 000000000000000000000000000000000000 \\ \hline 2 & Prod=Prod+McandLshiftMcandRshiftMplier & & & \\ \hline 3 & lsb=0,noopLshiftMcandRshiftMplier & & & \\ \hline 4 & Prod=Prod+McandLshiftMcandRshiftMplier & & & \\ \hline 5 & lsb=0,noopLshiftMcandRshiftMplier & & & \\ \hline 6 & lsb=0,noopLshiftMcandRshiftMplier & & & \\ \hline \end{tabular}
