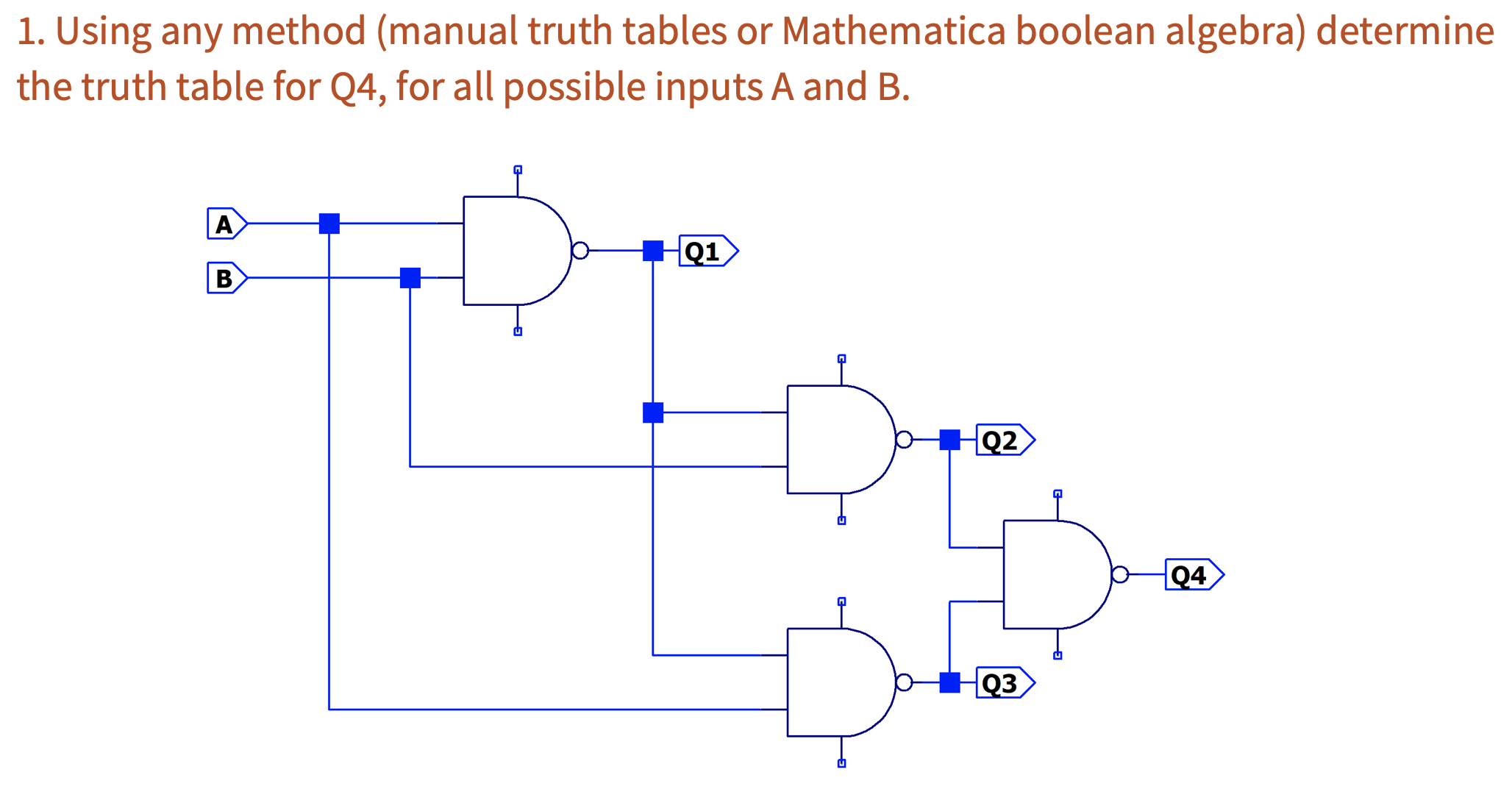

Question: Using any method ( manual truth tables or Mathematica boolean algebra ) determine the truth table for Q 4 , for all possible inputs A

Using any method (manual truth tables or Mathematica boolean algebra) determine
the truth table for Q4, for all possible inputs A and B.
Using any method ( manual truth tables or

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
