Using Arena progrman:

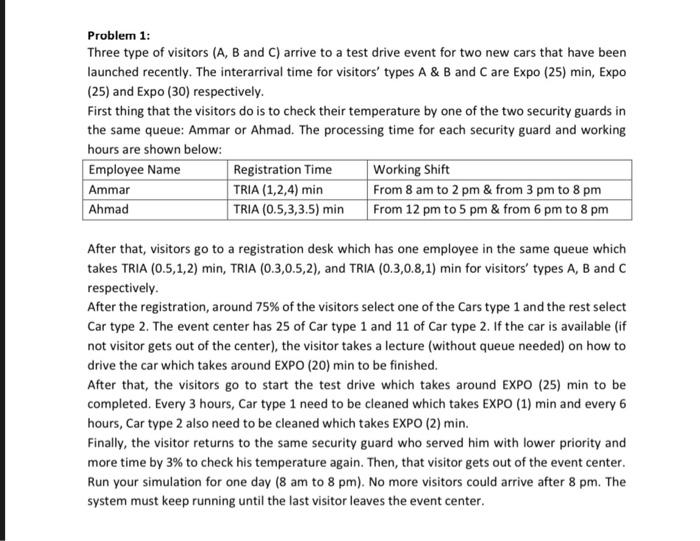

Problem 1: Three type of visitors (A, B and C) arrive to a test drive event for two new cars that have been launched recently. The interarrival time for visitors' types A & B and Care Expo (25) min, Expo (25) and Expo (30) respectively. First thing that the visitors do is to check their temperature by one of the two security guards in the same queue: Ammar or Ahmad. The processing time for each security guard and working hours are shown below: Employee Name Registration Time Working Shift Ammar TRIA (1,2,4) min From 8 am to 2 pm & from 3 pm to 8 pm Ahmad TRIA (0.5,3,3.5) min From 12 pm to 5 pm & from 6 pm to 8 pm After that, visitors go to a registration desk which has one employee in the same queue which takes TRIA (0.5,1,2) min, TRIA (0.3,0.5,2), and TRIA (0.3,0.8,1) min for visitors' types A, B and C respectively. After the registration, around 75% of the visitors select one of the Cars type 1 and the rest select Car type 2. The event center has 25 of Car type 1 and 11 of Car type 2. If the car is available (if not visitor gets out of the center), the visitor takes a lecture (without queue needed) on how to drive the car which takes around EXPO (20) min to be finished. After that, the visitors go to start the test drive which takes around EXPO (25) min to be completed. Every 3 hours, Car type 1 need to be cleaned which takes EXPO (1) min and every 6 hours, Car type 2 also need to be cleaned which takes EXPO (2) min. Finally, the visitor returns to the same security guard who served him with lower priority and more time by 3% to check his temperature again. Then, that visitor gets out of the event center. Run your simulation for one day (8 am to 8 pm). No more visitors could arrive after 8 pm. The system must keep running until the last visitor leaves the event center. From the report, find the results of the following: Value Performance Measurements Average # in registration desk queue Max. waiting time registration desk queue Average total time in system for the visitors who choose car type 2 Number of visitors who finished their test drive every 4 hours (Hint: Do not forget to consider # of visitors in the system after 8pm) Problem 1: Three type of visitors (A, B and C) arrive to a test drive event for two new cars that have been launched recently. The interarrival time for visitors' types A & B and Care Expo (25) min, Expo (25) and Expo (30) respectively. First thing that the visitors do is to check their temperature by one of the two security guards in the same queue: Ammar or Ahmad. The processing time for each security guard and working hours are shown below: Employee Name Registration Time Working Shift Ammar TRIA (1,2,4) min From 8 am to 2 pm & from 3 pm to 8 pm Ahmad TRIA (0.5,3,3.5) min From 12 pm to 5 pm & from 6 pm to 8 pm After that, visitors go to a registration desk which has one employee in the same queue which takes TRIA (0.5,1,2) min, TRIA (0.3,0.5,2), and TRIA (0.3,0.8,1) min for visitors' types A, B and C respectively. After the registration, around 75% of the visitors select one of the Cars type 1 and the rest select Car type 2. The event center has 25 of Car type 1 and 11 of Car type 2. If the car is available (if not visitor gets out of the center), the visitor takes a lecture (without queue needed) on how to drive the car which takes around EXPO (20) min to be finished. After that, the visitors go to start the test drive which takes around EXPO (25) min to be completed. Every 3 hours, Car type 1 need to be cleaned which takes EXPO (1) min and every 6 hours, Car type 2 also need to be cleaned which takes EXPO (2) min. Finally, the visitor returns to the same security guard who served him with lower priority and more time by 3% to check his temperature again. Then, that visitor gets out of the event center. Run your simulation for one day (8 am to 8 pm). No more visitors could arrive after 8 pm. The system must keep running until the last visitor leaves the event center. From the report, find the results of the following: Value Performance Measurements Average # in registration desk queue Max. waiting time registration desk queue Average total time in system for the visitors who choose car type 2 Number of visitors who finished their test drive every 4 hours (Hint: Do not forget to consider # of visitors in the system after 8pm)
