Description: A pet is identified by the Pet ID. A Pet can be one Pet Type Only but there are from zero to many Pets of a particular Pet Type. A Pet has one and only one owner, but an owner has from one to many pets. Add an Owner ID to the Owner Table. A pet has from one to many visits (ADD A VISIT ID to a Visit Table that Includes the Visit Date and whatever foreign keys are necessary).

During a visit, there are one too many procedures and each procedure is represented in one too many visits. The procedure table will need to have a procedure ID and the Procedure description.

Normalize to 3NF.

Hint: use an iterative process identify the dependencies and work with the ERD to eliminate many too many relationships and transitive dependencies. Make sure every relationship is connected with a foreign key.

ERD in 3NF:

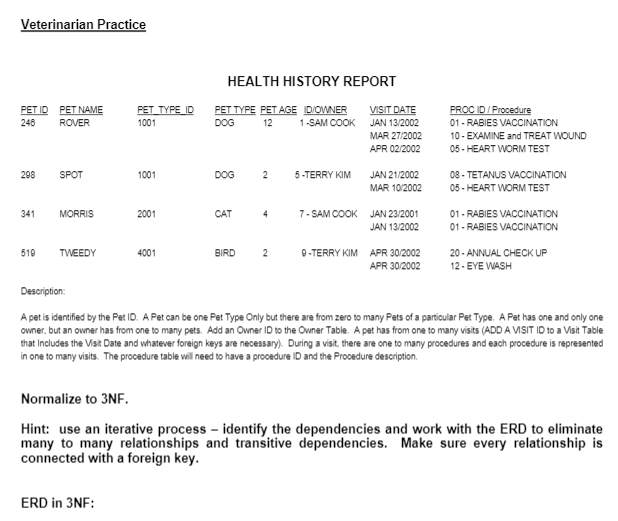

Review the information linked below this assignment on "Veterinarian Practice" which documents a "Health History Report" that we want to convert into a set of normalized tables.

Use entity-relationship diagramming and normalization to determine the fully normalized implementation of the database.

Create a diagram in Draw.IO

Veterinarian Practice PET ID PET NAME 248 ROVER PET TYPE ID 1001 HEALTH HISTORY REPORT PET TYPE PET AGE DOWNER VISIT DATE DOG 12 1-SAM COOK JAN 13/2002 MAR 27/2002 APR 02/2002 DOG 5 -TERRY KIM JAN 21/2002 MAR 10/2002 CAT 7- SAM COOK JAN 23/2001 JAN 13/2002 PROC ID / Procedure 01- RABIES VACCINATION 10-EXAMINE and TREAT WOUND 05 - HEART WORM TEST 08 - TETANUS VACCINATION 05 - HEART WORM TEST 298 SPOT 1001 2 341 MORRIS 2001 4 01 - RABIES VACCINATION 01 - RABIES VACCINATION 519 4001 BIRD 2 TWEEDY 9-TERRY KIM APR 30/2002 20-ANNUAL CHECK UP APR 30/2002 12- EYE WASH Description: A pet is identified by the Pet ID. A Pet can be one Pet Type Only but there are from zero to many Pets of a particular Pet Type. A Pet has one and only one owner, but an owner has from one to many pets. Add an Owner ID to the Owner Table. A pet has from one to many visits (ADD A VISIT ID to a Visit Table that Includes the Visit Date and whatever foreign keys are necessary). During a visit, there are one to many procedures and each procedure is represented in one to many visits. The procedure table will need to have a procedure ID and the Procedure description Normalize to 3NF. Hint: use an iterative process - identify the dependencies and work with the ERD to eliminate many to many relationships and transitive dependencies. Make sure every relationship is connected with a foreign key. ERD in 3NF
