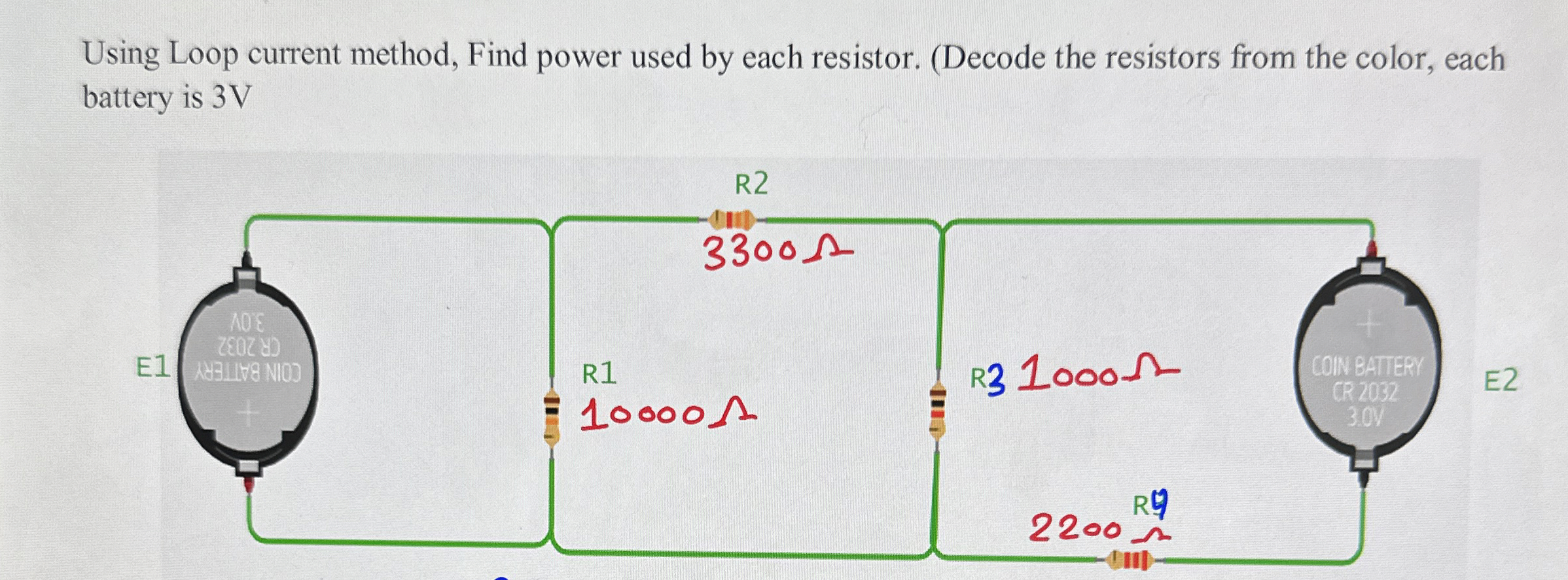

Question: Using Loop current method, Find power used by each resistor. ( Decode the resistors from the color, each battery is 3 V

Using Loop current method, Find power used by each resistor. (Decode the resistors from the color, each battery is 3 V
Using Loop current method, Find power used by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
