Question: Using LRFD , select the most economical W - shape with F y = 5 0 ksi. Assuming full lateral bracing for the compression flange.

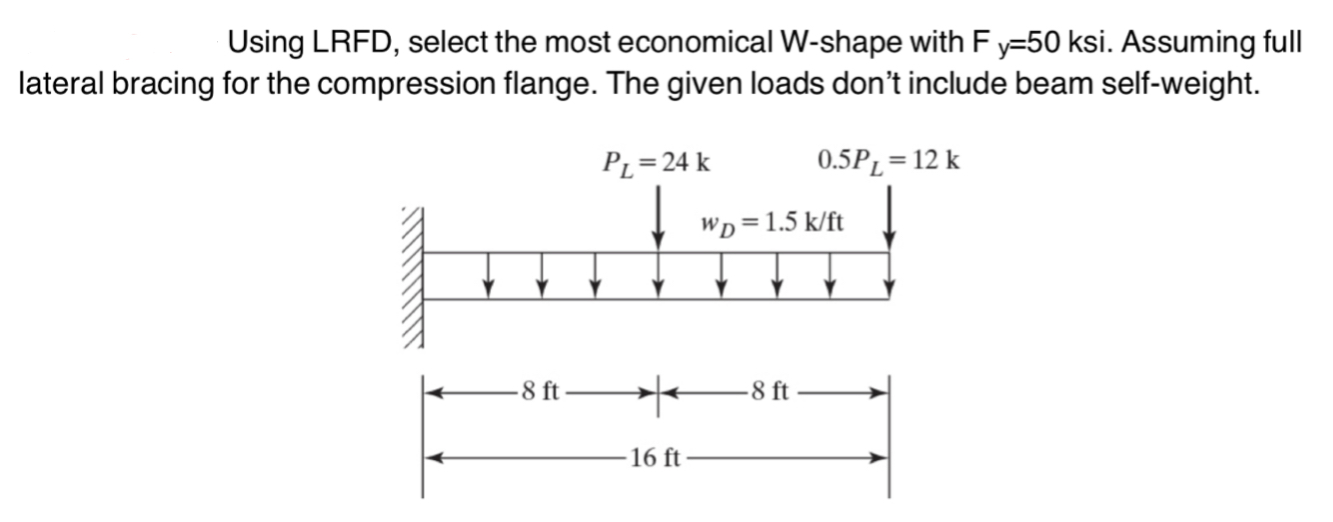

Using LRFD, select the most economical W-shape with Fy=50ksi. Assuming full
lateral bracing for the compression flange. The given loads don't include beam self-weight.
Using LRFD , select the most economical W - shape

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
