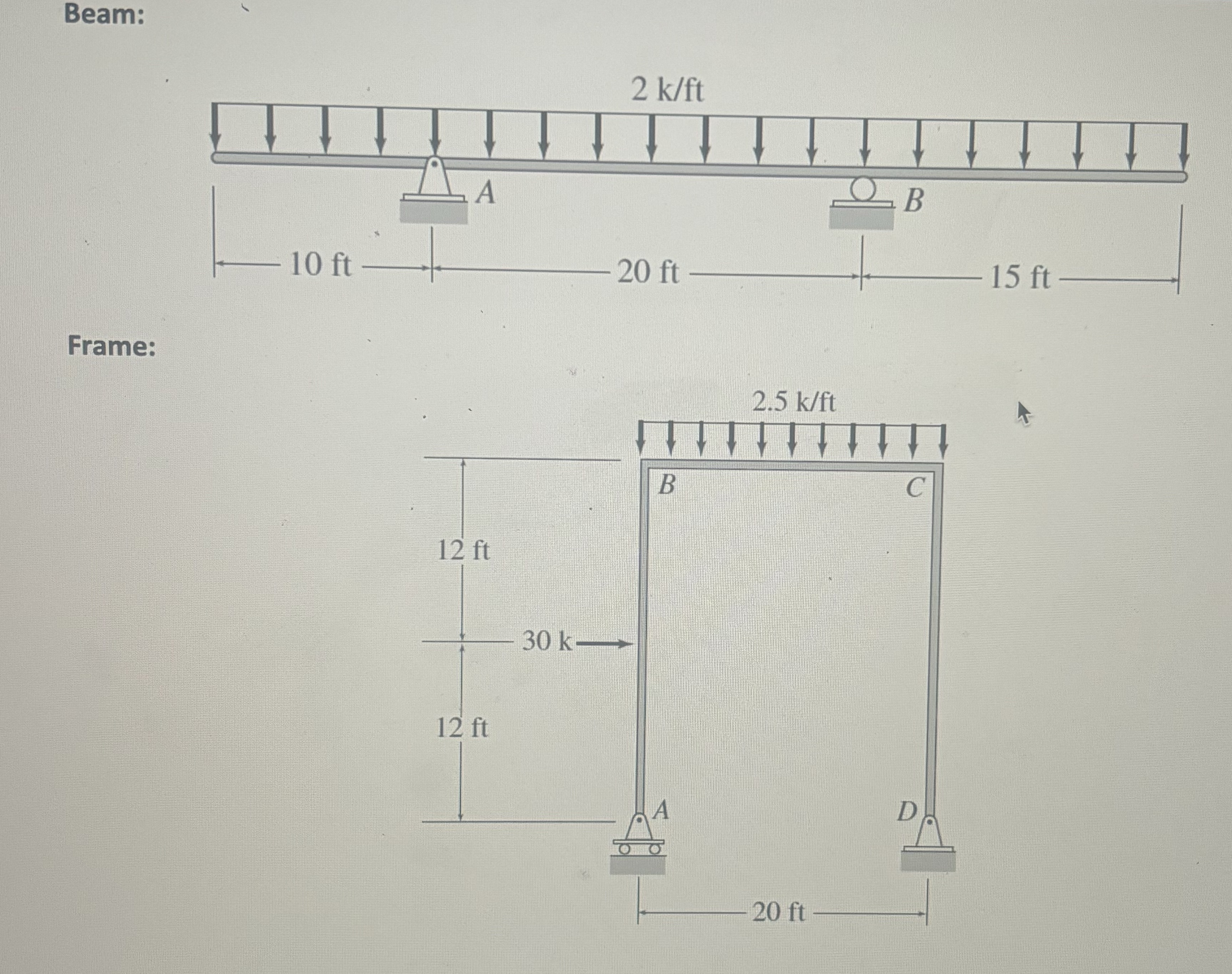

Question: Using MASTAN 2 , find the support reactions for the beam and frame A = 1 3 . 3 in ^ 2 , I =

Using MASTAN2, find the support reactions for the beam and frame
A=13.3in^2, I=248in^4, Z=54.9^3, E=29,000ksi
Using MASTAN 2 , find the support reactions for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
