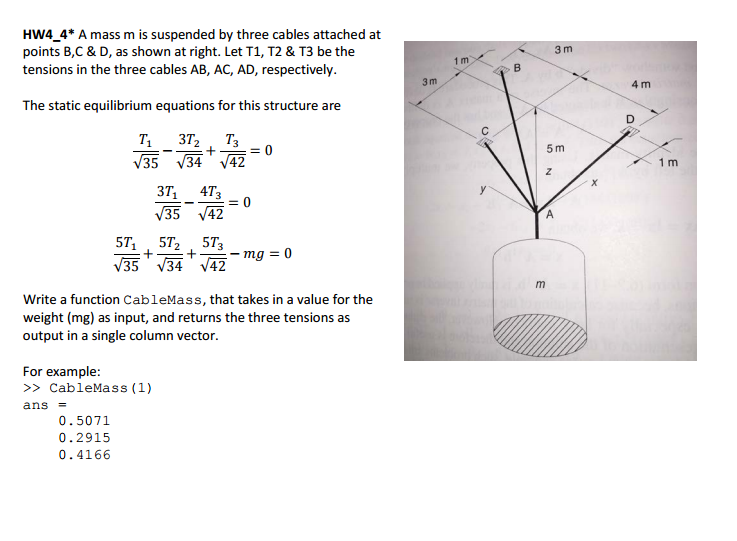

A mass m is suspended by three cables attached at points B, C & D, as shown at right. Let T1, T2 & T3 be the tensions in the three cables AB, AC, AD, respectively. The static equilibrium equations for this structure are T_1/ squareroot 35 - 3T_2/ squareroot 34 + T_3/ squareroot 42 = 0 3T_1/ squareroot 35 - 4T_3/ squareroot 42 = 0 5T_1/ squareroot 35 + 5T_2/ squareroot 34 + 5T_3 squareroot 42 - mg = 0 Write a function CableMass, that takes in a value for the weight (mg) as input, and returns the three tensions as output in a single column vector. >> Cable Mass(1) ans = 0.5071 0.2915 0.4166

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To solve this problem you need to create a MATLAB function called CableMass This function will take ... View full answer
